Dust Test Chamber
JISD 0207 Dust Test Chamber
Sand and dust test chamber built for JIS D0207 verification. Simulates dusty environments to assess sealing performance of electrical and electronic products, automotive and motorcycle parts, and seals.
Specifications
- Model
- SY-JIS1000-F2
- Workspace Dimensions (mm)
- 1000 x 1000 x 1000 mm (D x W x H)
- Outer Chamber Dimensions
- 1250 x 1550 x 1950 mm (D x W x H)
- Door
- Single door 1200 x 1200 mm (with observation window and LED lighting).
- Inner Chamber
- SUS201 stainless steel, mirror finish, with dust baffle
- Temperature
- 30 +/- 15 degrees
- Humidity
- 45-85%Hr
- Dust Concentration
- F1: >= 60000mg/m3 ，
- F2
- >= 3000mg/m3,
- F3
- >= 100 mg/m3; dust load 2 kg/m3
- Adjustable Concentration
- 100-6000 mg/m3 (gravimetric sampling method, measured with a special airflow meter)
- Airflow Speed
- 5-10 m/s, adjustable
- Talc Powder Consumption
- 2 kg/ m3
- Operating Mode
- program mode
- Control System
- embedded large LCD touchscreen
- Safety Protection
- Fan over-current alarm; power phase-loss and phase-sequence protection; automatic shutdown and power cut-off on fault.
- Power Supply
- AC 380 V +/- 10%, 50 Hz +/- 5%, three-phase four-wire with earth.
- Power Rating
- 2.5 KW
- Socket Outlet
- A dust-proof socket outlet is provided inside the chamber.
- Mobility
- Mobile casters fitted at the base of the chamber for free movement, with locking devices.
Application
Sand and dust test chamber built for JIS D0207 verification. Simulates dusty environments to assess sealing performance of electrical and electronic products, automotive and motorcycle parts, and seals.
Applicable Standards
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
After-Sales Service
1. One-year warranty with lifetime service.
2. During the warranty period, components damaged under normal operation are replaced free of charge.
3. After the warranty period, replacement parts damaged under normal operation are charged at cost only.
4. Full technical training is provided, with timely after-sales support for equipment maintenance, spare parts supply and other requirements.

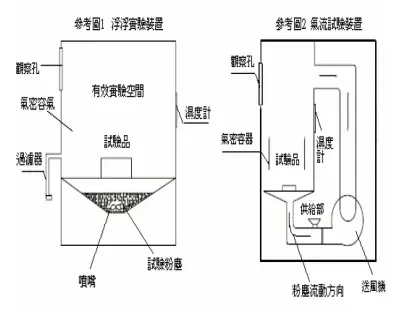

Construction
