Dust Test Chamber
Dust&Sand Test Chamber for IP56X
Sand and dust test chamber for IP5X and IP6X verification. Simulates dusty air environments to assess dust ingress protection of electrical equipment, automotive and motorcycle parts, and seals.
Specifications
- Temperature Range
- Rt+10 degC-60 degC
- Fine Dust
- 75 um or below
- Coarse Dust
- 150 um or below
- Airflow Speed
- less than 2 m/s
- Talc Powder Consumption
- 5 kg/m3 (talc powder)
- Dust Concentration
- 2 kg/m3 (adjustable)
- Flow Rate
- 1-25 L/min digital airflow meter with cumulative totalising
- Dimensions
- Nominal wire diameter 50 um, nominal wire spacing 75 um or 150 um or below
- Power Supply
- AC380 V 50 Hz 3 KW
- Door
- tempered glass door
- Blower
- all-plastic centrifugal blower
- Cycle Period
- freely adjustable
- Test Duration
- 0 s to 999 h 99 m 99 s, freely adjustable
- Power Cycling
- off - on - off
- Material
- SUS304 stainless steel sheet
Application
Sand and dust test chamber for IP5X and IP6X verification. Simulates dusty air environments to assess dust ingress protection of electrical equipment, automotive and motorcycle parts, and seals.
Applicable Standards
Tested to GB2423, GB4706, GB4208.
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.

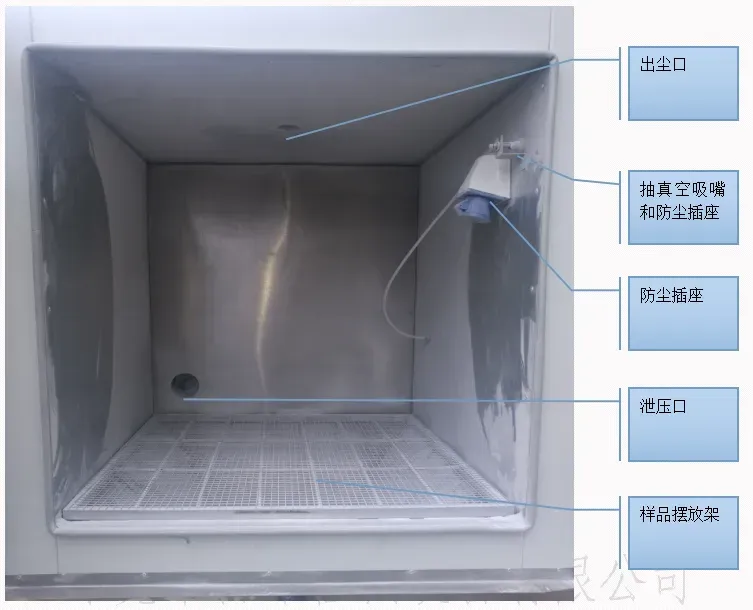

Construction
