Dust Test Chamber
Dust Test Chamber-Amazon Test Standard
Sand and dust test chamber configured to the Amazon test standard. Simulates dusty environments to verify dustproof sealing performance of electrical products, automotive parts and seals.
Specifications
- Model
- LM-SC1000-LA2
- Workspace Dimensions (mm)
- 1000 x 1000 x 1000 mm (D x W x H)
- Outer Chamber Dimensions
- 1250 x 1550 x 1950 mm (D x W x H)
- Door
- Single door 1200 x 1200 mm (with observation window and LED lighting).
- Inner Chamber
- SUS201 stainless steel, mirror finish, with dust baffle
- Temperature Range
- Indoor RT +10 to 60 degC (heated dust baking system)
- Humidity Range
- <= 85%RH；
- Airflow Speed
- no more than 2 m/s
- Dust Concentration
- 2-4 kg/m3；
- Dust Specification
- Square-mesh dry talc powder passing a 75 um sieve with 50 um wire diameter
- Vibration Time
- 1 s to 999 h, adjustable
- Dust Blowing Time
- 1 s to 999 h, adjustable
- Dust Dehumidification
- electric heating dehumidification
- Specimen Pressure Differential
- A: below atmospheric pressure by 1.98 kPa, or B: no pressure differential
- Operating Mode
- program mode
- Control System
- embedded large LCD touchscreen
- Safety Protection
- Fan over-current alarm; power phase-loss and phase-sequence protection; automatic shutdown and power cut-off on fault.
- Power Supply
- AC 220 V +/- 10%, 50 Hz +/- 5%, two-phase three-wire.
- Power Rating
- 1.5 KW
Application
Sand and dust test chamber configured to the Amazon test standard. Simulates dusty environments to verify dustproof sealing performance of electrical products, automotive parts and seals.
Applicable Standards
GB 4208-2008, GB/T 2423.37-2008, IEC 60529, ISO 20653
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
After-Sales Service
1. One-year warranty with lifetime service.
2. During the warranty period, components damaged under normal operation are replaced free of charge.
3. After the warranty period, replacement parts damaged under normal operation are charged at cost only.
4. Full technical training is provided, with timely after-sales support for equipment maintenance, spare parts supply and other requirements.

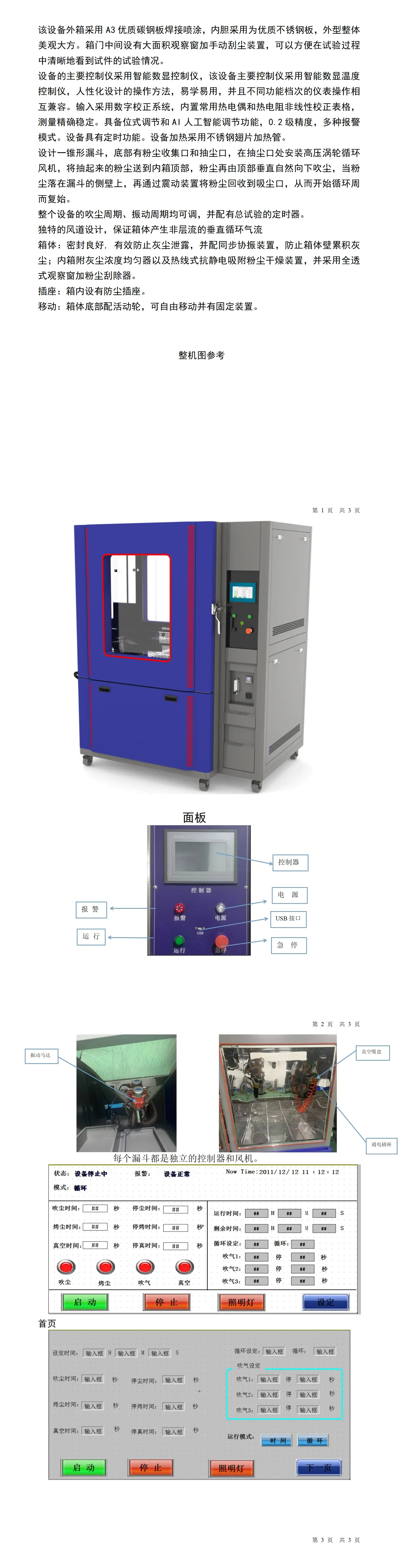

Construction
