Dust Test Chamber
IP56X Dust Test Chamber-LA2
IP56X sand and dust test chamber (LA2) verifying dust ingress protection of electrical and electronic products, automotive and motorcycle parts, and seals in dusty environments.
Specifications
- Model
- LM-SC1000-B
- Workspace Dimensions (mm)
- 1000 x 1000 x 1000 mm (D x W x H)
- Outer Chamber Dimensions
- 1280 x 1550 x 2150 mm (D x W x H)
- Door
- Single door 1300 x 1200 mm (with observation window and LED lighting).
- Inner Chamber
- SUS201 stainless steel, mirror finish, with dust baffle
- Humidity Range
- Indoor RT +10 to 60 degC (heated dust baking system)
- Dust Discharge Method
- Bottom dust extraction, dispersed by multi-blade and discharged from the top
- Airflow Speed
- no more than 2 m/s
- Dust Concentration

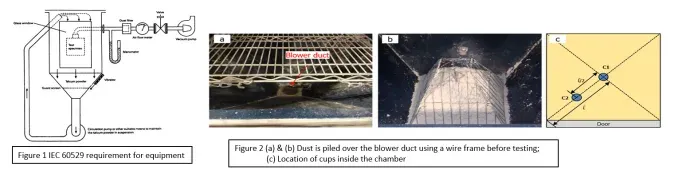

- 2-4 kg/m3; 1 min blowing and 14 min rest, 8 cycles, settling 5.5 +/- 3.5 g. Two plastic cups are required to collect dust during the test; cup inner diameter 8.3 cm, height 6.4 cm.
- Dust Specification
- Square-mesh dry talc powder or Aladdin T109494 passing a 75 um sieve with 50 um wire diameter
- Vibration Time
- 1 s to 999 h, adjustable
- Dust Blowing Time
- 1 s to 999 h, adjustable
- Dust Dehumidification
- electric heating dehumidification
- Specimen Pressure Differential
- Extraction rate (flow) and extraction volume can be set and monitored; A: below atmospheric pressure by 1.98 kPa, or B: no pressure differential. Airflow rate and accumulated volume are monitored. Tes
- Operating Mode
- program mode
- Control System
- embedded large LCD touchscreen
- Safety Protection
- Fan over-current alarm; power phase-loss and phase-sequence protection; automatic shutdown and power cut-off on fault.
- Power Supply
- AC 380 V +/- 10%, 50 Hz +/- 5%, three-phase four-wire with earth.
- Power Rating
- 2.0 kW; sound pressure level approx. 65 dB(A)
Application
IP56X sand and dust test chamber (LA2) verifying dust ingress protection of electrical and electronic products, automotive and motorcycle parts, and seals in dusty environments.
Applicable Standards
GB 4208-2008, GB/T 2423.37-2008, IEC 60529, ISO 20653
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
After-Sales Service
1. One-year warranty with lifetime service.
2. During the warranty period, components damaged under normal operation are replaced free of charge.
3. After the warranty period, replacement parts damaged under normal operation are charged at cost only.
4. Full technical training is provided, with timely after-sales support for equipment maintenance, spare parts supply and other requirements.

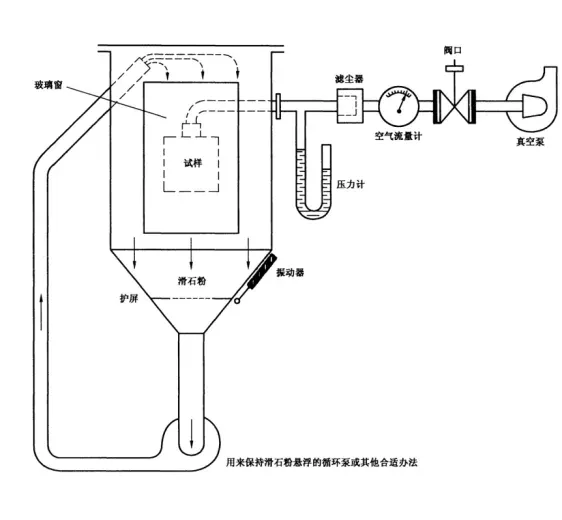

Construction
