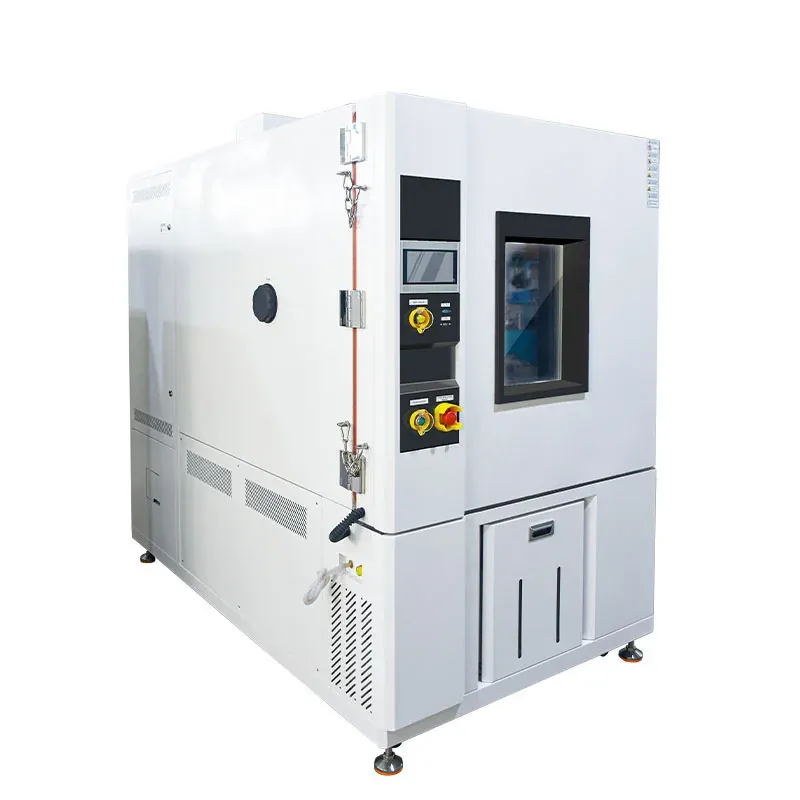

High-Low Temperature & Humidity Test Chamber (AH Series)
SYSCON supplies the AH Series temperature and humidity test chamber, simulating a wide range of temperature and humidity environments from -70 degC to +150 degC with 20% to 98% RH. Suitable for heat, cold, dry and humidity tolerance testing of electronic products, appliances and materials.
Specifications
- Series
- AH Series
- Temperature Range
- -20 to +150 degC / -40 to +150 degC / -70 to +150 degC (model dependent)
- Humidity Range
- 20% RH to 98% RH
- Workspace Volume
- 80 L / 105 L / 225 L / 408 L / 800 L / 1 m3 (model dependent)
- Controller
- LED true colour ultrathin touch screen
Product Presentation

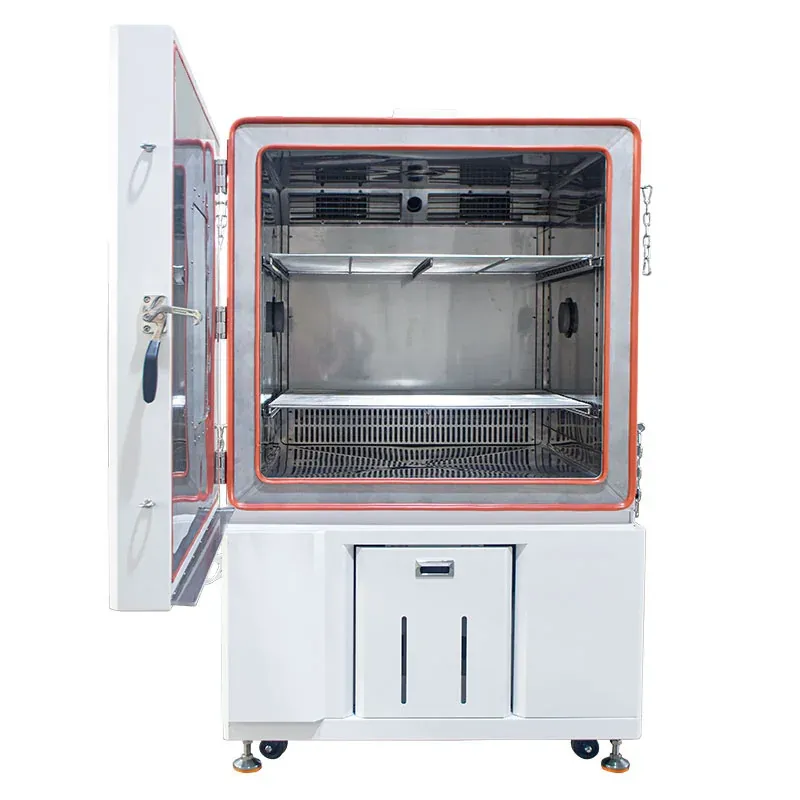

High-low temperature & humidity test chamber is widely used in testing various types of materials for their tolerances of heat, cold, dry and humidity. It is designed for quality inspection of all types of electronic products, electric appliances and components. The chamber structure has a compact design with less space demand, applying safe, reliable, energy-efficient and environmentally friendly technology in the refrigerating system design.
Full Specifications
Performance
Series: AH Series
Temperature & Humidity Adjustment: Smart balanced temperature (humidity) control - BT(H)C
Temperature Range: -20 to +150 degC / -40 to +150 degC / -70 to +150 degC (model dependent)
Temperature Fluctuation: +/-0.5 degC
Temperature Uniformity: <= 2.0 degC
Temperature Deviation: +/-2.0 degC
Heat-up Rate (non-linear): From -20 to +100 degC in 35 min; from -40 to +100 degC in 45 min; from -70 to +100 degC in 60 min (no load)
Cool-down Rate (non-linear): From +20 to -20 degC in 45 min; from +20 to -40 degC in 60 min; from +20 to -70 degC in 80 min (no load)
Humidity
Humidity Range: 20% RH to 98% RH
Humidity Fluctuation: +/-2.0% RH
Humidity Uniformity: +/-3.0% RH
Humidity Deviation: +/-3.0% RH (>75% RH), +/-5.0% RH (<=75% RH)
Construction
Workspace Volume: 80 L / 105 L / 225 L / 408 L / 800 L / 1 m3 (model dependent)
Interior Material: Matte SUS #304 stainless steel plates
Exterior Material: Powder coated carbon steel plates
Seal: Imported silicone seal
Insulation: Hard polyurethane foam insulation and glass fibre
System
Heating: Nichrome wire electric heater
Refrigeration: France TECUMSEH hermetic compressor or equivalent; air-cooled or water-cooled cooling mode
Refrigerant: Zero ozone depletion potential (ODP) refrigerant
Controller: LED true colour ultrathin touch screen
Installation
Noise Level: <= 68 dB
Standard Configuration: Transparent electrothermal film double-layer glass window, test lead holes x2, lighting lamp x1, casters x4
Electrical Supply: AC 3-phase 4-wire 380 V 50 Hz (R.S.T.N plus ground)
Installed Power: 7 to 14 kW (model dependent)
Applicable Standards: GB-2423.1-2008 / GB-2423.2-2008 / GJB360 series and related standards
