Temperature&Humidity

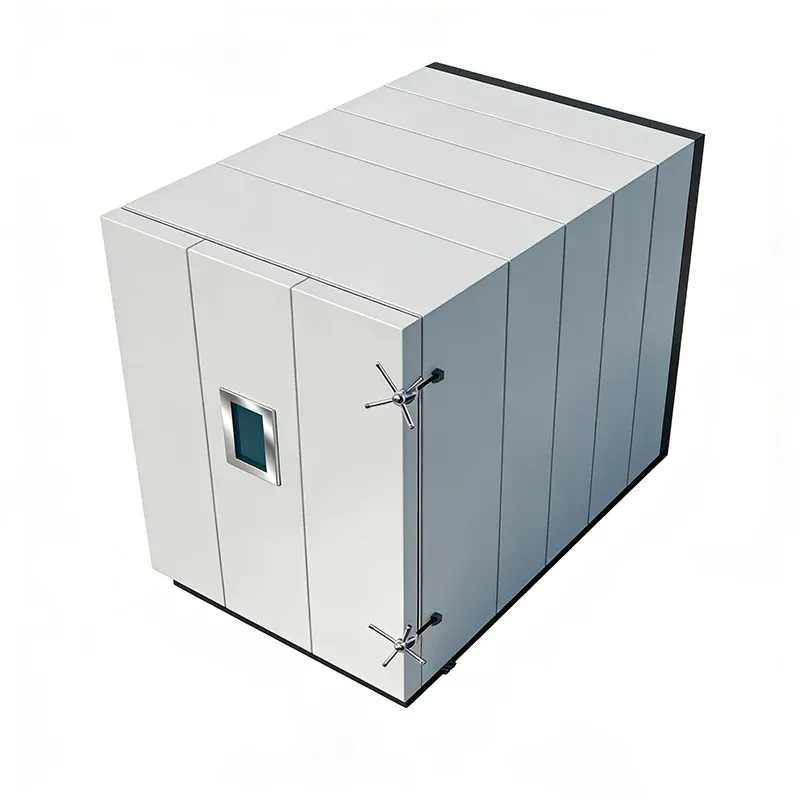

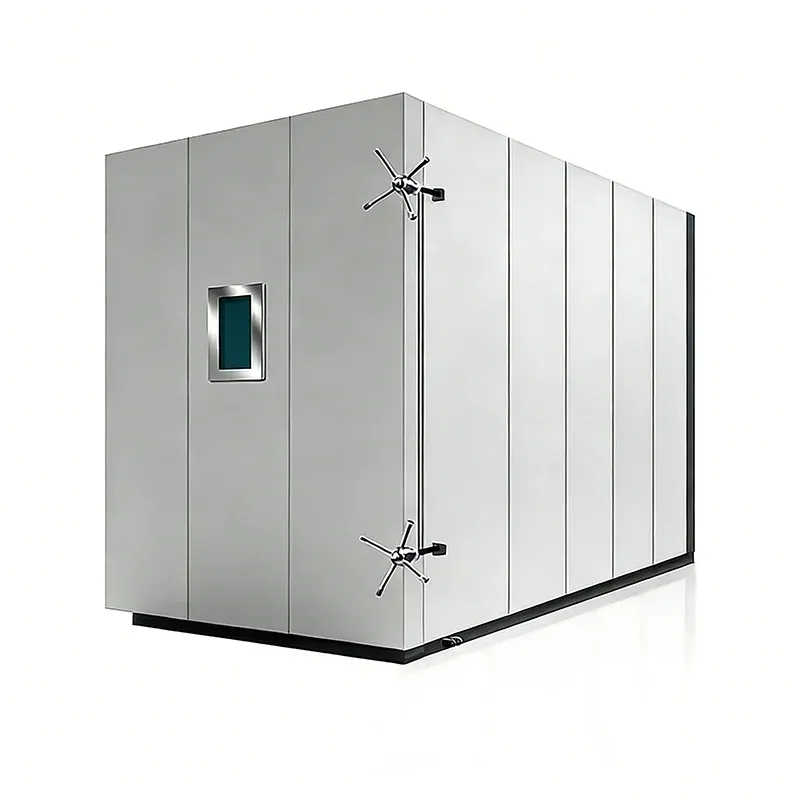

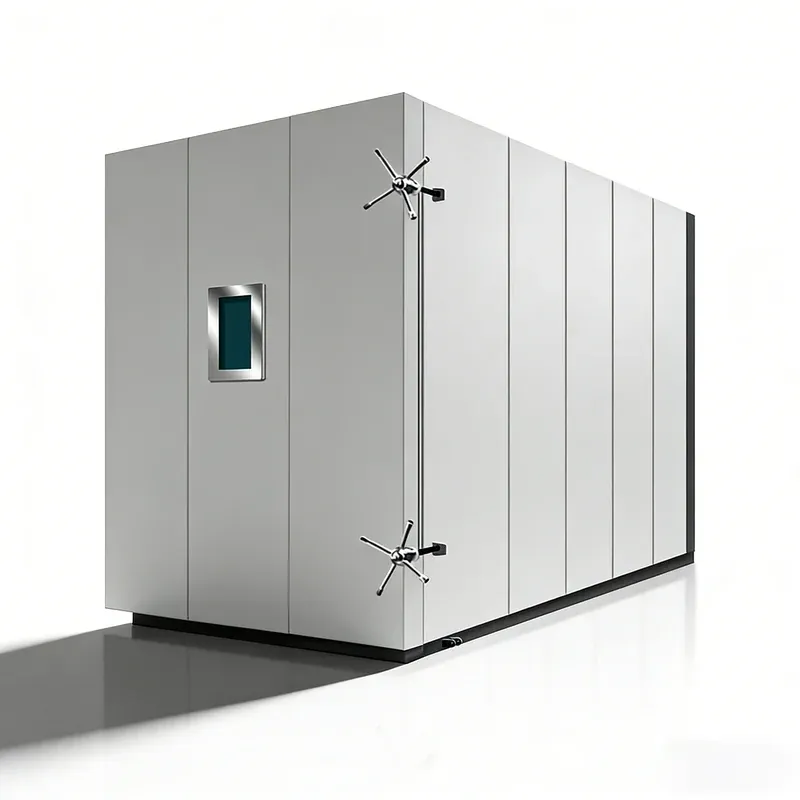

Walk-in Low-Pressure (Altitude) Test Chamber
SYSCON supplies the walk-in low-pressure test chamber for simulating high-altitude low-pressure environments. Modular structure with customisable internal dimensions for oversized assembled products and batch testing, with +/-0.1 kPa pressure control accuracy.
Specifications
- Type
- Walk-in low-pressure (altitude) test chamber
- Pressure Control Accuracy
- +/-0.1 kPa
- Temperature Accuracy
- +/-0.5 degC
- Control
- High-sensitivity sensors with intelligent control system for multi-grade altitude pressure simulation
Product Presentation
The walk-in low-pressure test chamber is professional large-volume testing equipment for simulating high-altitude low-pressure environments. It is specially designed for oversized, assembled products and batch testing, accurately simulating different altitude pressure and temperature conditions. It meets the reliability testing needs of aerospace, aviation, new energy and other industries with safe and stable performance. The modular walk-in structure allows fully customisable internal dimensions, accommodating oversized assembled products and realising batch low-pressure testing to greatly improve test efficiency. High-sensitivity sensors and an intelligent control system accurately simulate multi-grade altitude low-pressure environments with pressure control accuracy up to +/-0.1 kPa and temperature accuracy +/-0.5 degC.
Full Specifications
Overview
Type: Walk-in low-pressure (altitude) test chamber
Application: Simulation of high-altitude low-pressure environments; designed for oversized assembled products and batch testing
Accuracy
Pressure Control Accuracy: +/-0.1 kPa
Temperature Accuracy: +/-0.5 degC
Construction & Control
Structure: Modular walk-in structure with fully customisable internal dimensions
Sealing: High-quality sealing components with integral pressure-bearing structure; ultra-low air leakage rate
Control: High-sensitivity sensors with intelligent control system for multi-grade altitude pressure simulation
Application
Applicable Industries: Aerospace, aviation, new energy and related industries
