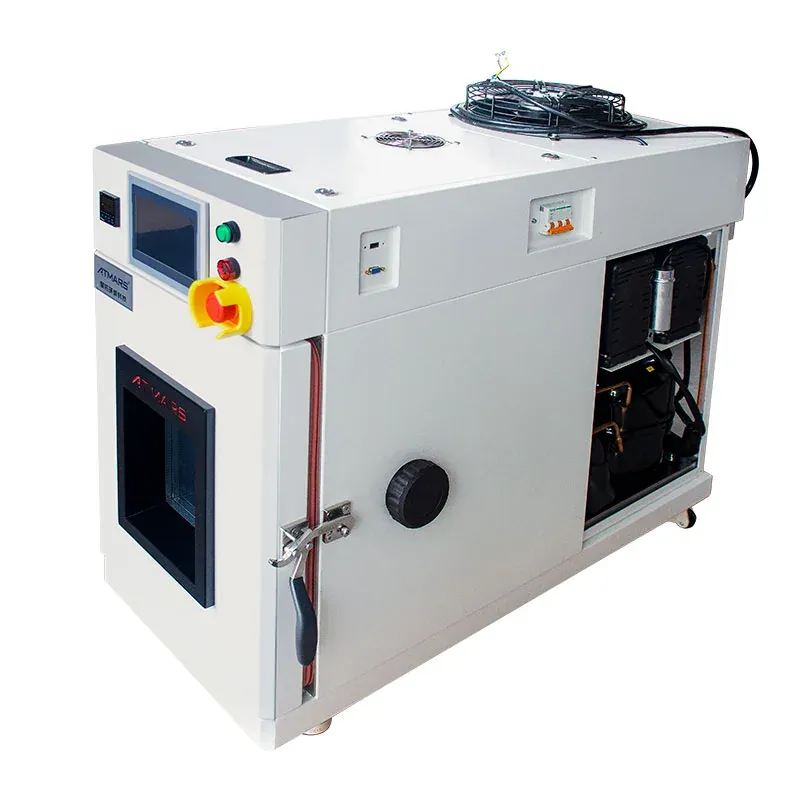

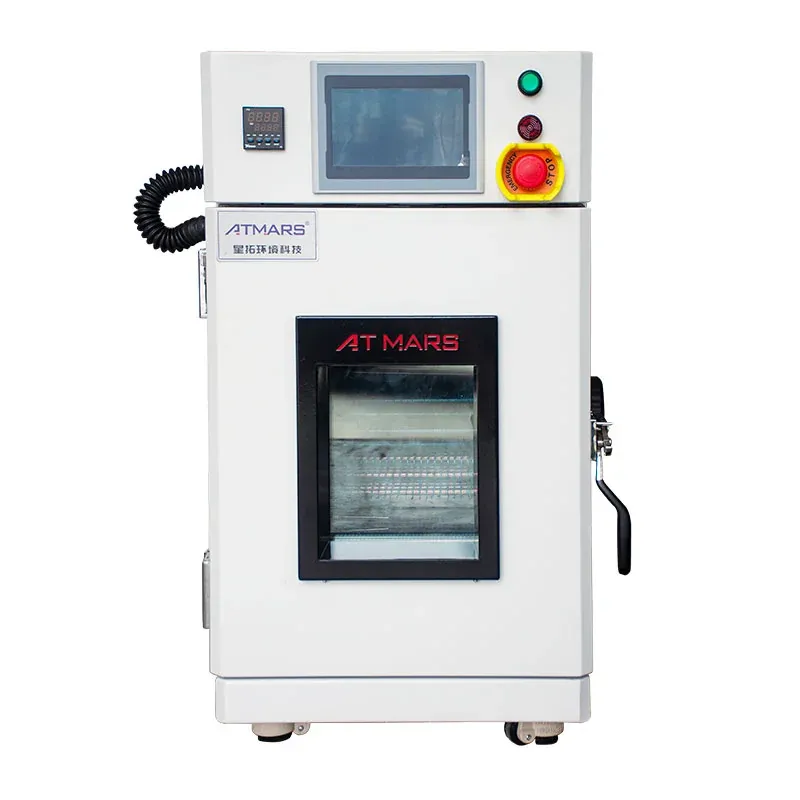

Bench-top Environmental Chamber for Controlled Environments
Bench-top environmental chamber providing controlled high and low temperature conditions for testing parts and components in electronics, automotive, aerospace and marine industries, suitable for design verification and factory inspection.
Specifications
- Model
- AT-30C
- Temperature Range
- -60 to +150 degC
- Temperature Uniformity
- <= 2.0 degC (no load)
- Interior Size
- W300 x H400 x D250 mm (customizable)
- Exterior Size
- W480 x H830 x D1060 mm (customizable)
- Controller
- ATMARS programmable AT-5166 colour LCD with PID control parameter setting
Product Presentation
ATMARS Temperature test chamber is widely used in industry sectors like electronics, automotive, aerospace, marine and so on to test the performance indicators of the parts and components. In accordance with the national standard or user-defined requirements, Atmars test chamber conducts environmental simulation to test the physical or other related characteristics of the products under high or low temperature. To check the performance of the product while undergoing temperature testing. So as to be used for product design, improvement, identification and factory inspection.
Full Specifications
Temperature Performance
Model: AT-30C
Temperature Range: -60 to +150 degC
Temperature Uniformity: <= 2.0 degC (no load)
Temperature Fluctuation: <= +/-0.5 degC
Temperature Deviation: <= +/-2.0 degC (no load), when temperature <= 100 degC
Analytical Accuracy: 0.01 degC
Heat Up Time: From -60 to +150 degC in about 70 min, 3.0 degC/min
Cool Down Time: From 20 to -60 degC in about 80 min, 1.0 degC/min
Dimensions
Interior Size: W300 x H400 x D250 mm (customizable)
Exterior Size: W480 x H830 x D1060 mm (customizable)
Materials and Construction
Interior Material: Stainless steel plate (SUS 304), thickness 1.0 mm
Exterior Material: Baked painting steel or stainless steel (SUS304), thickness 1.2 mm
Insulation Material: Rigid polyurethane foam and glass fibre wool
Insulation Thickness: 80 mm
Viewing Window: W210 x H370 mm; multi-layer hollow electrothermal coated glass
Cable Port: Port dia. 50 mm, one left and one right

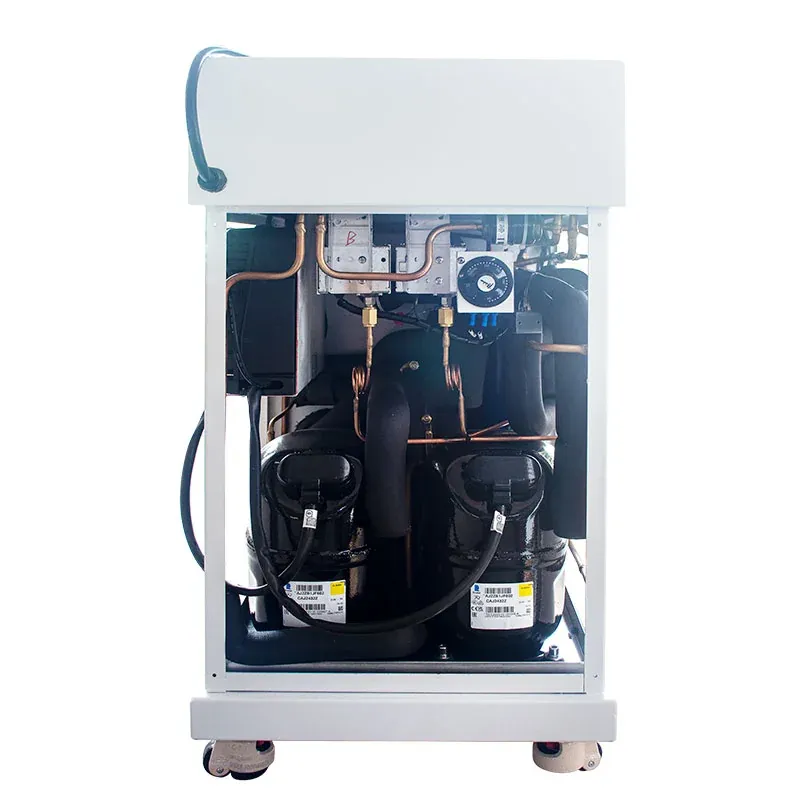

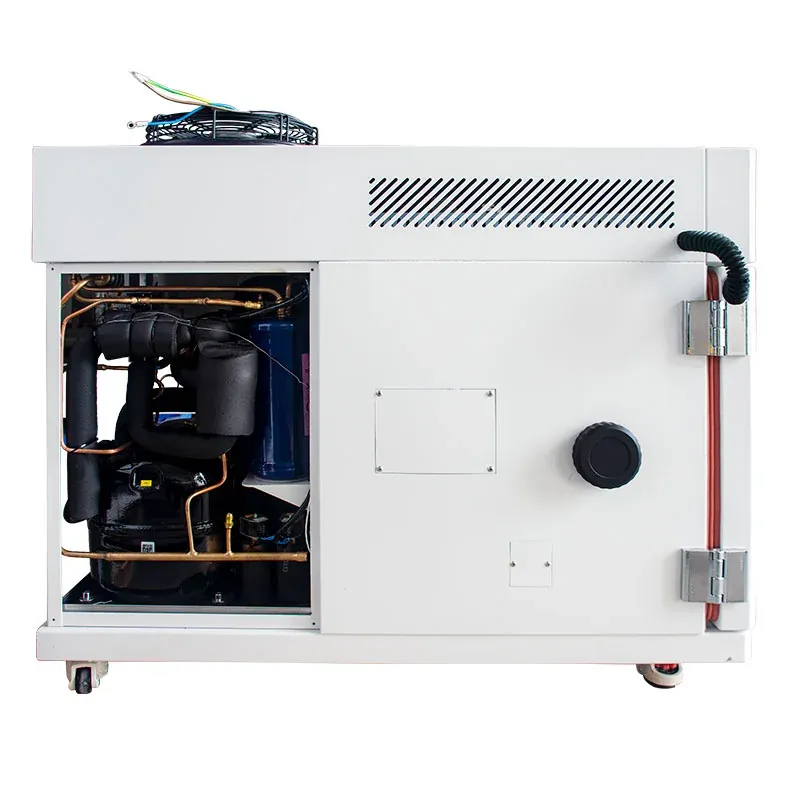

Refrigeration and Airflow
Cycling System: Stainless steel elongated shaft waterproof heat-dissipating motor; sirocco fan
Condenser: Automatic heat dissipation fin type with cooling motor (air cooling)
Evaporator: High-performance fin type with automatic load capacity adjustment
Refrigerant Flow Control: Refrigeration system with automatic energy output control
Vibration & Noise Reduction: Rubber pads installed at the compressor base
Control and Electrical
Heater: Nickel alloy wire heater (SSR)
Controller: ATMARS programmable AT-5166 colour LCD with PID control parameter setting
Setting Range: Temperature -70 to +150 degC; adjustable working range upper limit +5 degC, lower limit -5 degC. Humidity 0-100% RH
Noise Level: <= 68 dB (1 m from gate centre, measured at 1.2 m height)
