Immersion Test Chamber

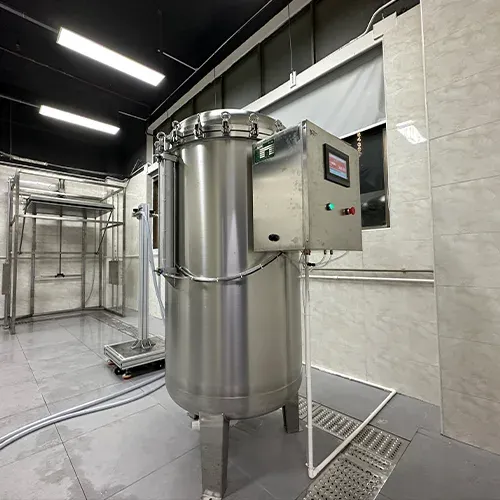

IPX8 Pressurized Immersion Test Machine
IPX8 pressurized immersion test machine for waterproof rating verification. Applies air pressure over a submerged sample to confirm housing and seal integrity of electrical equipment, lamps, communication devices and automotive parts.
Specifications
- Model
- LM-IPX8-600
- Vessel Inner Diameter
- 600 mm
- Vessel Height
- 1000 mm
- Overall Machine Dimensions
- 1000 x 800 x 1900 mm
- Power Supply / Power
- 220 V, 50 Hz, 2 kW
- Simulated Water Depth
- 0-30 m; 0-50 m
- Pressure Hold Range
- atmospheric to 300 kPa; atmospheric to 500 kPa (optional)
- Control System Option
- pressure gauge control or touchscreen control (optional)
- Safety Protection System
- power overload, short-circuit protection, earth leakage protection, low-water protection, audible alarm
Application
This equipment verifies that equipment housings and seals maintain performance during storage, transport and use in wet conditions. It is mainly used for waterproof performance and IP rating testing of electrical and electronic equipment, lamps, electrical cabinets, components, communication devices, cars, motorcycles and their parts, outdoor lighting and signal equipment.
Test Method
The sample is immersed in the pressure vessel and air pressure is applied above the water surface. Pressure is held for the set duration to reveal seal leakage.
Applicable Standards
Tested to GB 4208-2008 and IEC 60529-2001 (IP Code).
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
After-Sales Service
One-year warranty with lifetime service, replacement parts at cost after the warranty period, and full technical training with ongoing after-sales support.
