Immersion Test Chamber

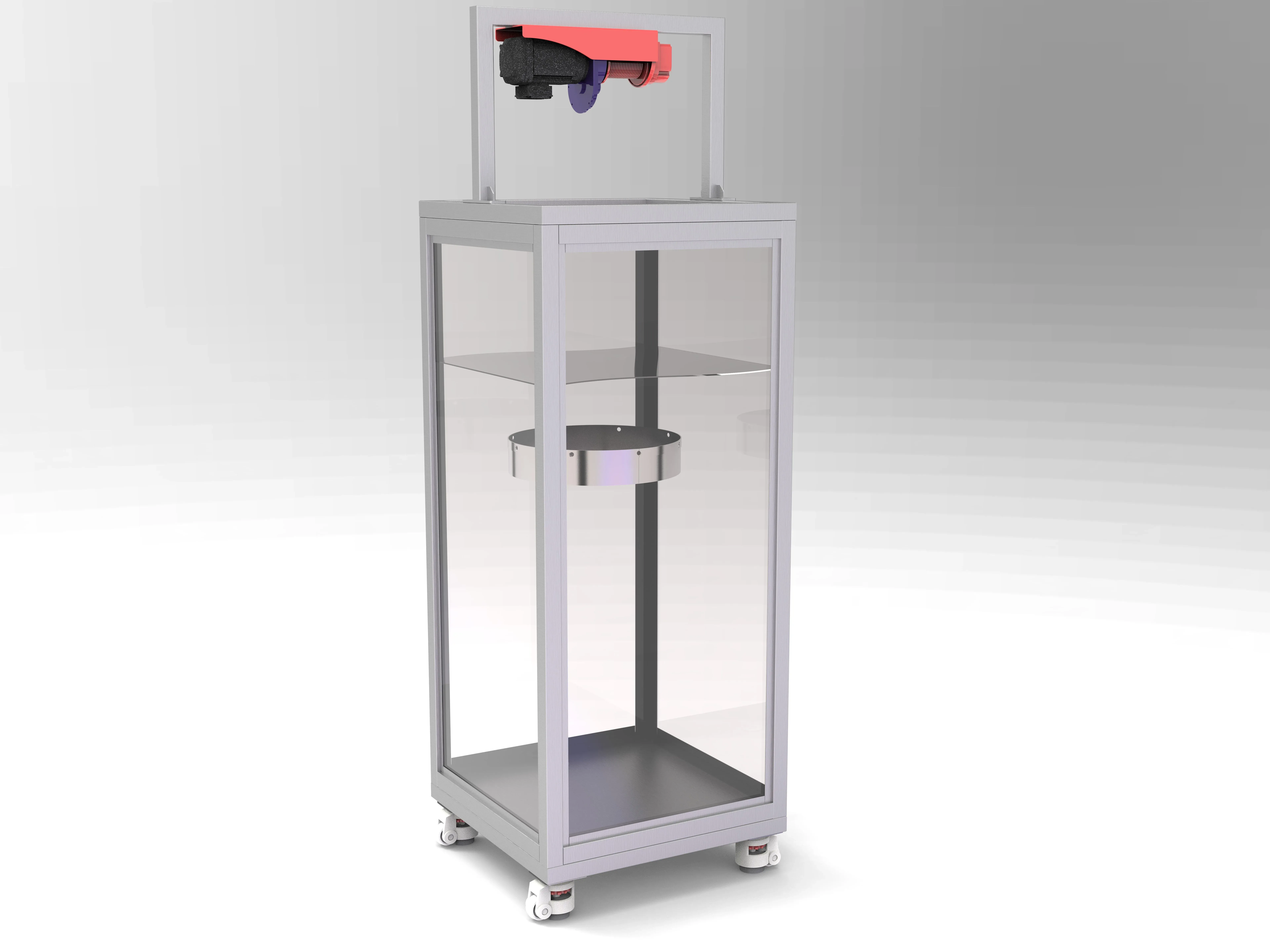

IPX7-IPX8 Immersion and Pressure Test Unit
Tested to GB2423, GB4208, IEC 60529.
Specifications
- Main technical parameters
- 1, Simulated Water Depth: 0-30m; 0-50m
- Pressure Hold Range
- atmospheric pressure-300kap; atmospheric pressure-500kap; (optional)
- Basket Load Capacity
- 10 kg
- Water Level Display
- scale plus water level tube
- Lifting Device
- portable stainless steel basket
- Control System Option
- pressure gauge control or touchscreen control(optional)
- Vessel
- S304 stainless steel vessel
- Vessel Wall Thickness
- 3 mm
- Operating Conditions
- Power supply:220V; frequency:50HZ; power:2 KW
- Environmental Conditions
- Temperature 5-40 degC, relative humidity <= 85% RH
- Safety Protection Device
- power overload short-circuit protection earth leakage protection low-water protection audible alarm
Applicable Standards
Tested to GB2423, GB4208, IEC 60529.
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
Test Method
Test conditions: for specimens smaller than800 mm, the specimen is placed in the immersion tank with the sample bottom at least1m。for specimens larger than800 mm, the specimen top is at least0.15m。
After-Sales Service
After the warranty period, replacement parts damaged under normal operation are charged at cost only.
Full technical training is provided, along with timely after-sales support for maintenance and spare parts.
