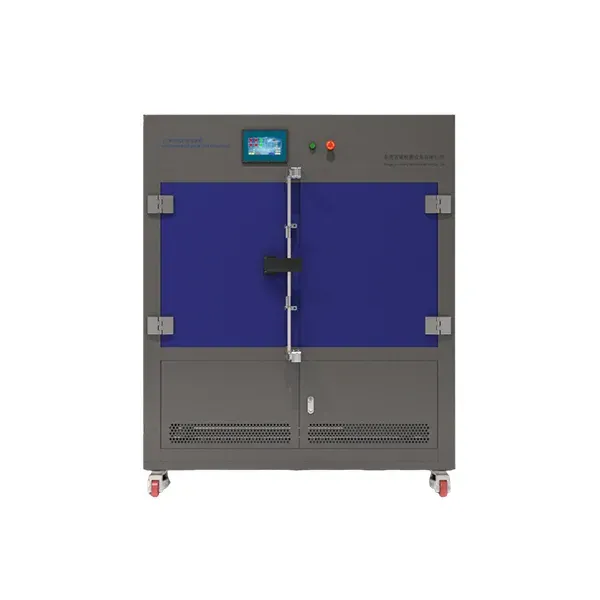

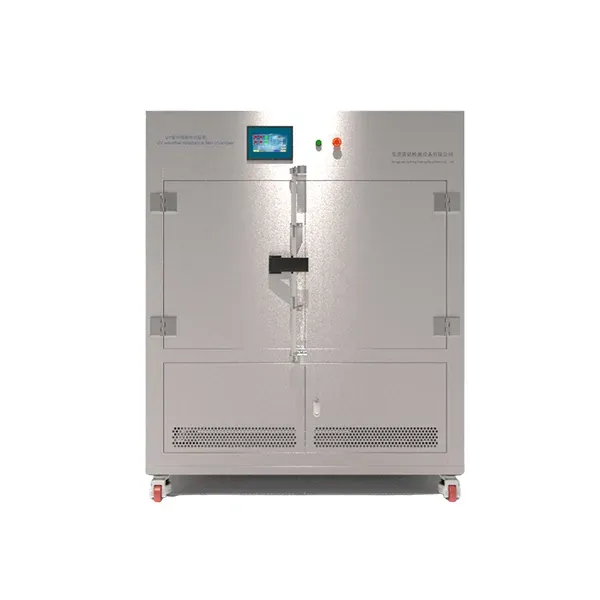

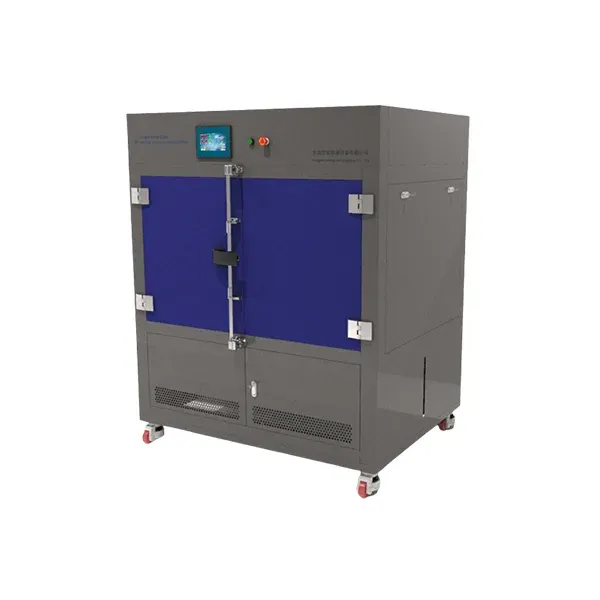

Square UV Aging Test Chamber
Square-type UV weathering chamber for accelerated ageing of coatings, plastics and rubber. Fluorescent UV lamps reproduce solar radiation and condensed moisture replicates rain and dew under cyclic light and humidity phases.
Specifications
- Model
- LM-UV-3
- Workspace Dimensions
- 1140 x 650 x 400 mm(W*D*H)
- Dimensions
- 1300 x 800 x 1550 mm(W*D*H)
- Wavelength
- UVA-340, 315-400 nm band, irradiance 0.35-1.2 W/m2
- Lamp Quantity
- 8 pcs
- Power Rating
- 40 W per lamp
- Lamp Brand
- Q-LAB (USA) / domestic
- Lamp Life
- approx. 1600 hours
- Temperature Range
- RT+10 degC-70 degC
- Humidity Range
- >= 75%RH
- Temperature Uniformity
- <= ±3 degC
- Temperature Fluctuation
- ±0.5 degC
- Black Panel Temperature
- 50 degC-63 degC
- Sample to Lamp Distance
- 50 mm
- Lamp Centre-to-centre Distance
- 70 mm
- Irradiance Intensity
- 0.35-1.2 W/m2, adjustable
- Test Duration
- 1-9999 hours / minutes / seconds, adjustable
- Safety Protection
- Phase-sequence protection, earth leakage protection, over-temperature protection, fault protection
- Operating Conditions
- Power supply: 220 V, 50 Hz, 4500 W
- Environmental Conditions
- Temperature 5-30 degC, relative humidity <= 85% RH
- Liner Material
- SUS304 stainless steel sheet
- Outer Chamber Material
- SUS304 stainless steel housing or baked enamel
- Control System
- Siemens touchscreen and PLC controller
- Water Source and Consumption
- Clean or distilled water, 8 L/day (customer-supplied)
Application
Square-type UV weathering chamber for accelerated ageing of coatings, plastics and rubber. Fluorescent UV lamps reproduce solar radiation and condensed moisture replicates rain and dew under cyclic light and humidity phases.
Applicable Standards
Tested to GB/T 14522-93, ASTM G 154, ISO 4892-1, ISO 11507, ASTM D 4329.
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
