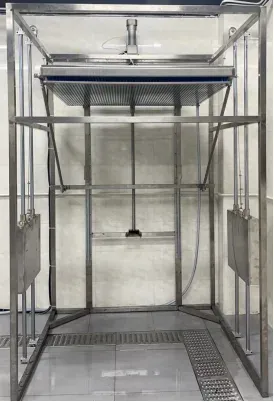

Open-type IPX3-IPX4 Splash Rain Test Unit

Open-type IPX3 and IPX4 splash and rain test unit simulating rain and splashing water for waterproof rating verification of electrical and electronic products, automotive parts and outdoor lighting.

Specifications

Model

SY-IP12-KF

Drip Area

1000 x 1000 mm

Drip Tank Adjustable Range

1000-200 mm

Raindrop Diameter

0.5~4.5 mm

Aperture

ø0.4 mm

Hole Spacing

20*20 mm

Flow Rate

1-8 L/min (adjustable)

Drip Rate

1-3 mm/min (adjustable)

Drip Tank Height

120 mm

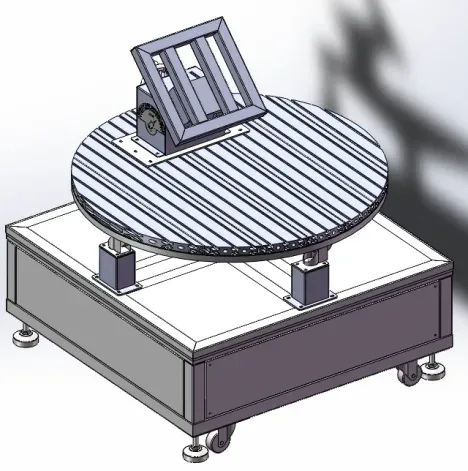

Test Table

Diameter 1000 mm, load capacity 100 kg

Sample Tray Rotation Mode

Turntable 360 degree continuous forward/reverse rotation, 90 degree interval rotation, or custom rotation

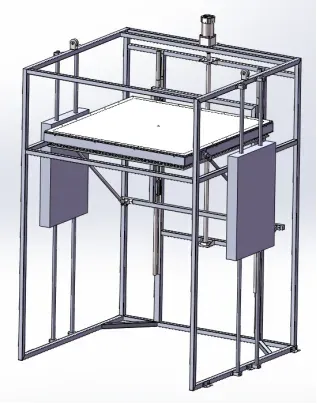

Fixed Column and Bracket

Made from high-quality aluminium alloy profile for easy disassembly and quick assembly.

Drip Tank

Made from 3.0 mm SUS304 stainless steel sheet with a pressure-resistant sealed top cover. Drip orifices are arranged in a 20 x 20 mm matrix. Special drip nozzles use imported 22 G dispensing needles w

Water Supply Tank

The unit is supplied with a water tank providing test water. Made from PVC sheet, pressure-resistant and corrosion-resistant, 400 L capacity, fitted with an inlet filter and a covered top to keep out

Automatic Lifting Mechanism

To suit specimens of various sizes, the drip tank height is adjusted by a lifting mechanism with upper and lower limit auto-stop control to prevent accidental damage from misoperation.

Angle-adjustable Worktable

Unlike the rotating table, this worktable is fixed. The worktable surface can be set to the standard 45 degree angle and has T-slots that can secure a 100 kg specimen. Casters are fitted at the base s
