Rain Spray Test Chamber

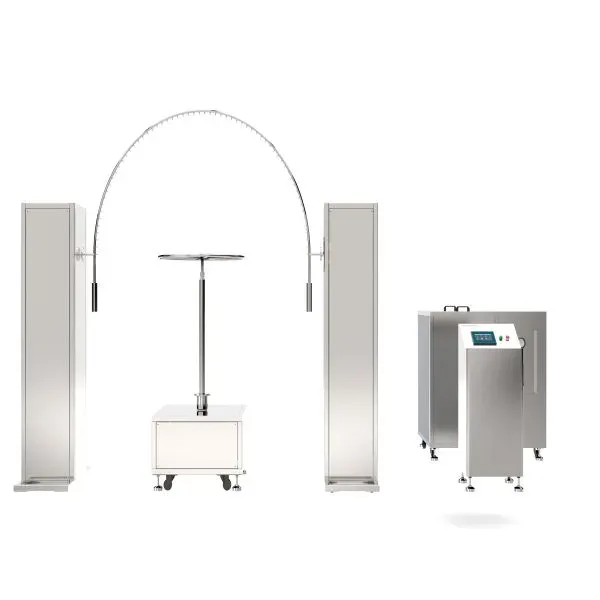

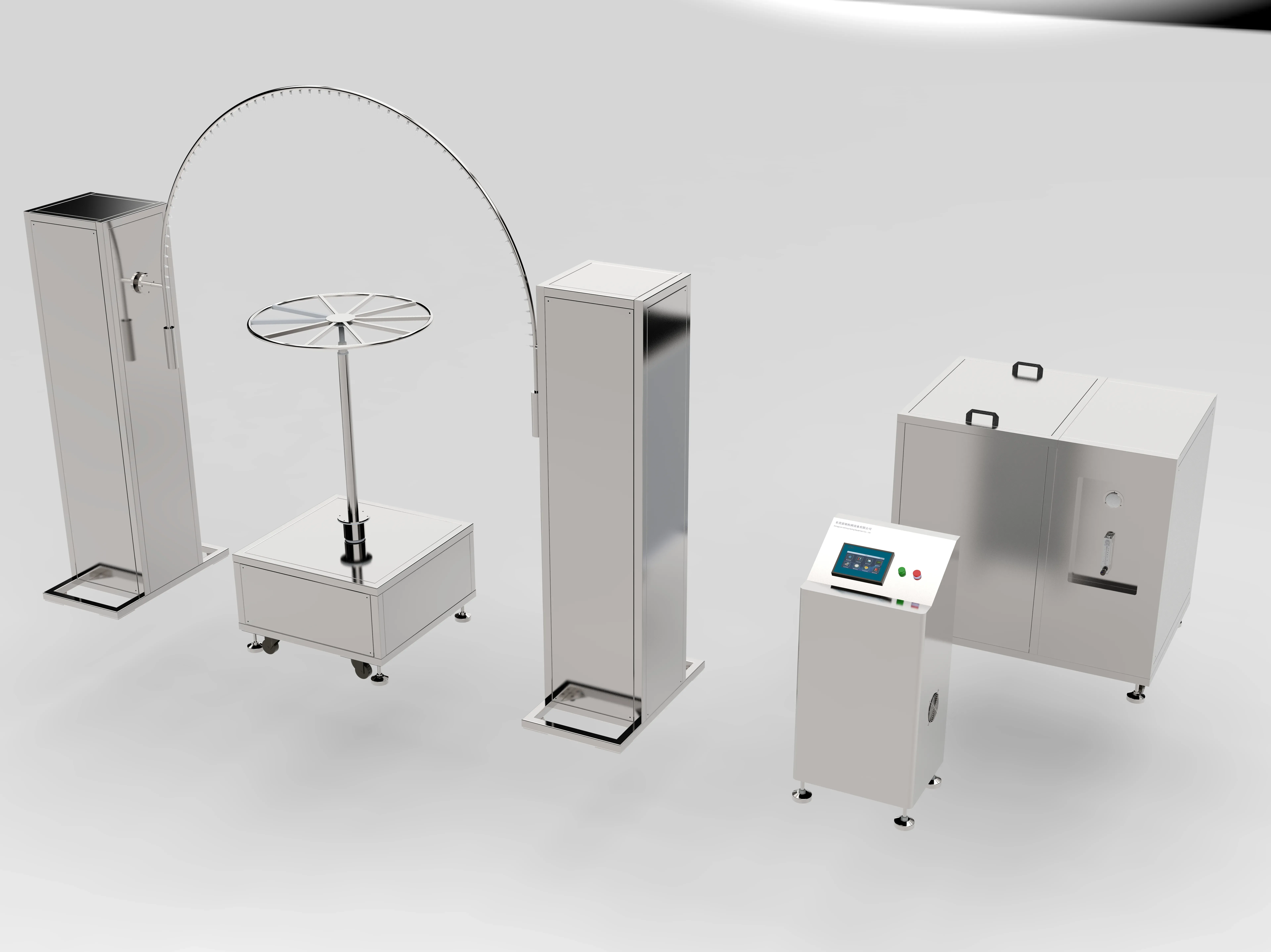

Open-type IPX3-IPX4 Oscillating Tube Rain Test System
Tested to GB2423, GB4706.32-2004, IEC 529.
Specifications
- Spray Orifice Diameter (mm)
- dia. 0.4
- Spray Pressure (kPa)
- 80-150, direct readout on pressure gauge
- Oscillating Tube Test Duration
- each oscillation(2 x 120 degrees)approx.4S, oreach oscillation(2 x 320 degrees)approx.12S
- Rain Spray Pressure
- 80~150Kpa(adjustable)
- Control system
- PLC+stepper motor+touchscreen
- Safety Protection Device
- power overload, short-circuit protection, earth leakage protection, low-water protection, audible alarm
- Power supply
- 1∮, 220V, 50 Hz。
- Control system: PLC + stepper motor + touchscreen
- oscillating tubeangle, oscillation speed, test duration can all be set directly on thetouchscreen
- Safety Protection Device:
- 1, power overload, short-circuit protection
- earth leakage protection
- 3, low-water protection
Applicable Standards
Tested to GB2423, GB4706.32-2004, IEC 529.
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
After-Sales Service
After the warranty period, replacement parts damaged under normal operation are charged at cost only.
Full technical training is provided, along with timely after-sales support for maintenance and spare parts.
