Rain Spray Test Chamber

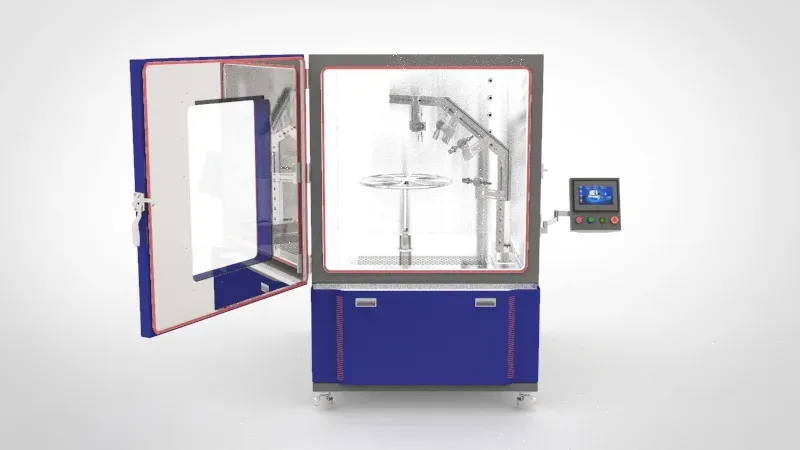

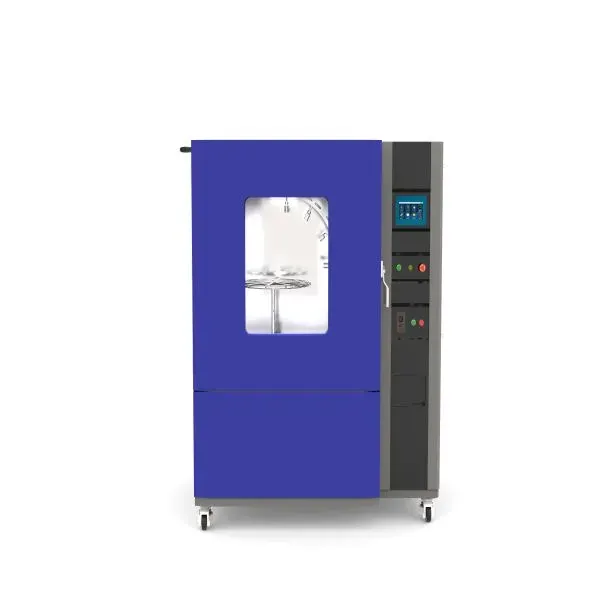

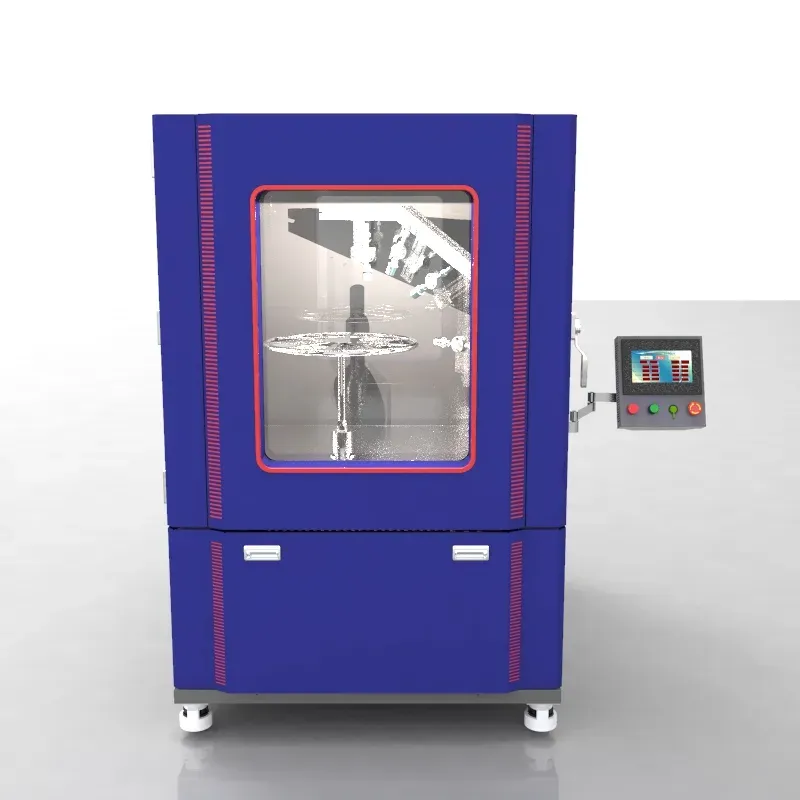

IPX9K High-Temperature Spray Test Chamber
Tested to IEC60529, GB4208, DIN40050-9, ISO20653, DIN40050.
Specifications
- Technical parameters
- 1, Applicable standards: IEC 20653 (EU standard)
- Pipe Diameter
- 3/4 inch
- Spray Water Temperature
- 80 degC±5 degC
- Spray Flow Rate
- 14-16 L/min
- Spray Distance
- 10-15 cm
- Spray Pressure
- 80-100 bar (8000-10000 kPa), 100 kg
- Spray Angle and Duration
- 0 degrees, 30 degrees, 60 degrees, 90 degrees, spray per angle30s
- Turntable Speed
- 5±1r/min
- Turntable Load Capacity
- 30 kg
- Water-facing Surface Direction
- front of the machine
- Water Recirculation System
- water supply is recirculated
- Running Time
- 1-9999 min (adjustable)
- Material Used (Spray Pipe)
- 304 stainless steel hydraulic tube
- Water Tank
- 304 stainless steel with insulation layer
- Outer Chamber
- 304 stainless steel/ baked enamel
- Test Chamber Composition
- Comprises test table, water storage tank, control cabinet, dewatering buffer zone and spray system
- electronic flow meter
- 17, Operating conditionsPower supply:380V; frequency:50HZ; power :12 KW
Applicable Standards
Tested to IEC60529, GB4208, DIN40050-9, ISO20653, DIN40050.
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
After-Sales Service
After the warranty period, replacement parts damaged under normal operation are charged at cost only.
Full technical training is provided, along with timely after-sales support for maintenance and spare parts.
