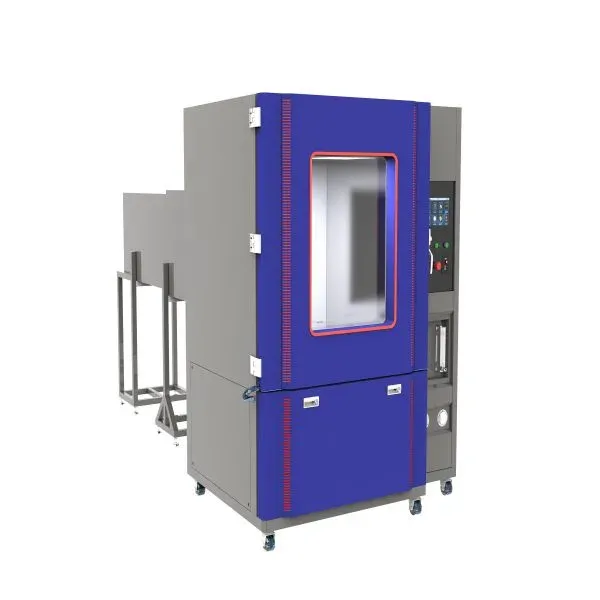

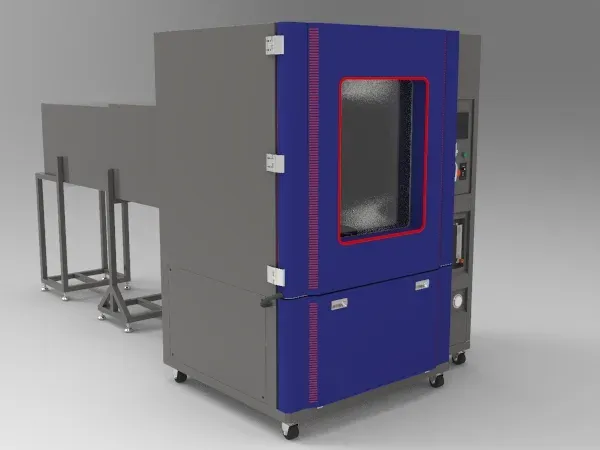

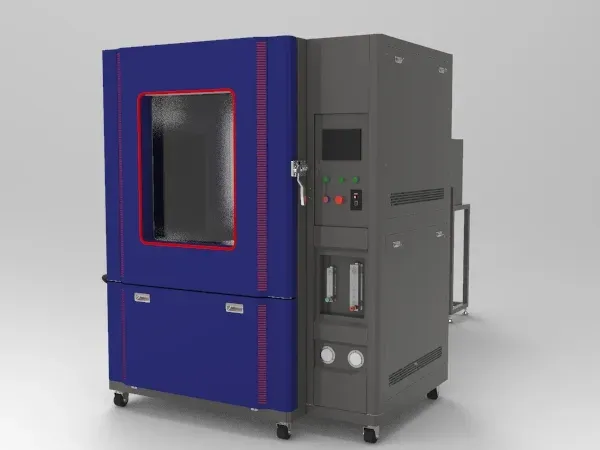

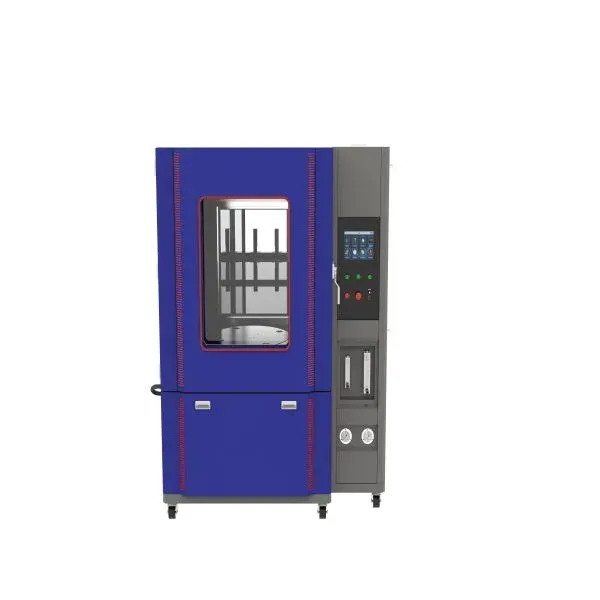

IPX5-6 Spray Test Chamber
IPX5 and IPX6 spray test chamber for waterproof rating verification of electrical and electronic equipment, lamps, electrical cabinets and automotive parts under jetting water.
Specifications

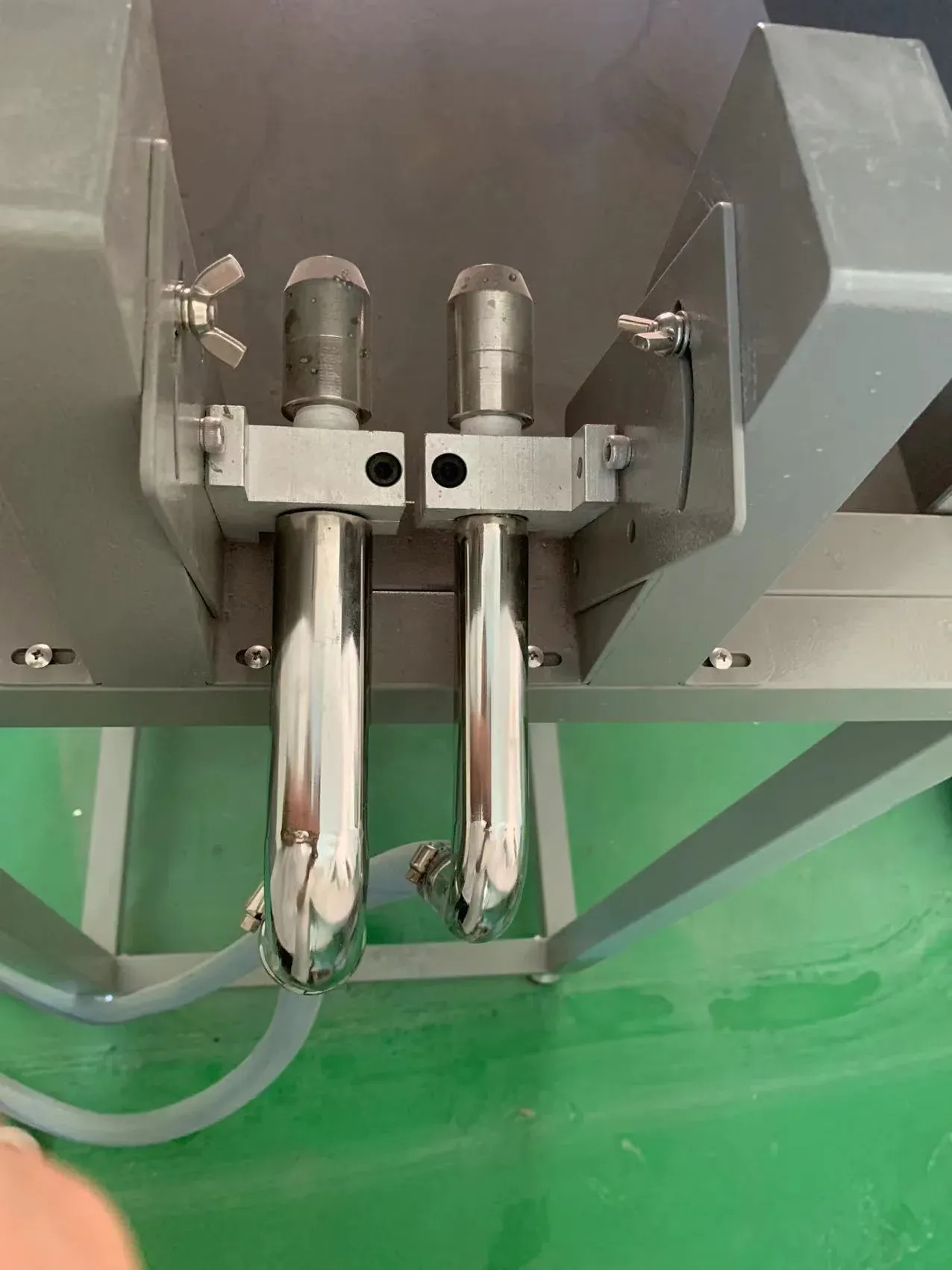

- Nozzle Orifice Inner Diameter
- IPX5 rating: dia. 6.3 mm; IPX6 rating: dia. 12.5 mm
- Flow Rate
- IPX5 rating: 12.5 +/- 1 L/min; IPX6 rating: 100 +/- 5 L/min
- Pipe Diameter
- One 1/2 inch and one 1 inch high-pressure hose each
- Spray Pressure
- 100-300 kPa (adjusted by flow rate)
- Turntable
- 1 pc, speed 3 +/- 1 rpm
- Spray Duration
- 3, 10, 30 and 9999 min (adjustable)
- Running Time Control
- 1-9999 min (adjustable)
- Control System
- In-house developed touchscreen control system.
- Inner Chamber Dimensions
- The dimensions given here are for the rear-nozzle configuration only; please contact our sales team for top-spray or left-spray dimensions
Application
IPX5 and IPX6 spray test chamber for waterproof rating verification of electrical and electronic equipment, lamps, electrical cabinets and automotive parts under jetting water.
Applicable Standards
Tested to GB/T 2423.38-90, GB4706.32-2004, IEC 60529, GB4208.
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
After-Sales Service
3. After the warranty period, replacement parts damaged under normal operation are charged at cost only.
4. Full technical training is provided, with timely after-sales support for equipment maintenance, spare parts supply and other requirements.
