IPX3-IPX4 Shower Head Test Device

After the warranty period, replacement parts damaged under normal operation are charged at cost only.

Specifications

Model

LM-IPX34 shower head

Test Room Overall Dimensions

2500 mm deep x 2500 mm wide x 3000 mm high

Orifice Diameter

0.5 mm

Nozzle Hole Quantity

121 pcs

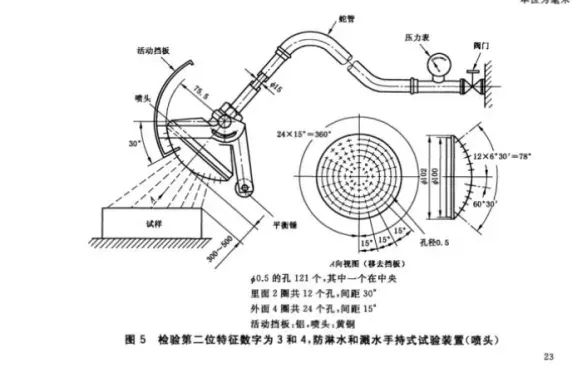

Nozzle Hole Layout

1 hole at centre; 12 holes at 30 degree intervals on 2 inner circles; 24 holes at 15 degree intervals on 4 outer circles

Spherical Nozzle Diameter

dia. 75.5 mm

Nozzle Material

brass

Handle & Valve Material

304 stainless steel

Nozzle Baffle

stainless steel

Pressure Gauge

0-0.6 MPa

Spray Pressure

80-150 kPa, adjustable
