Rain Spray Test Chamber

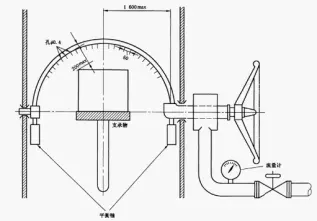

IPX3-IPX4 Oscillating Tube Rain Test System
Tested to GB2423, GB4706.32-2004, IEC 5129, ISO20653.
Specifications
- Turntable Load Capacity
- 20KG
- Turntable Speed (rpm)
- 1-3 (adjustable)
- Flow Rate per Spray Orifice
- 07 L/min +5%
- Rain Spray Pressure (kPa)
- 80-150
- Spray Pipe Oscillation Angle Range
- 120 degrees and 320 degrees (approximate)
- Nozzle Included Angle
- 120 degrees (IPX3), 180 degrees (IPX4)
- Oscillation Angle
- 120 degrees (IPX3), 320 degrees (IPX4)
- Oscillating Tube Swing Range
- maximum +/- 180 degrees (approximate)
- Spray Pipe Oscillation Speed
- IPX3: 15 cycles/min; IPX4: 5 cycles/min
- Flow Meter
- 0-4 LPM
- Inner Chamber Material
- stainless steel
- Environmental Conditions
- Temperature 5-40 degC, relative humidity <= 85% RH
- Safety Protection System
- Power overload/ short-circuit protection, earth leakage protection, low-water protection, audible alarm
Applicable Standards
Tested to GB2423, GB4706.32-2004, IEC 5129, ISO20653.
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
After-Sales Service
After the warranty period, replacement parts damaged under normal operation are charged at cost only.
Full technical training is provided, along with timely after-sales support for maintenance and spare parts.
Test Method
