Rain Spray Test Chamber

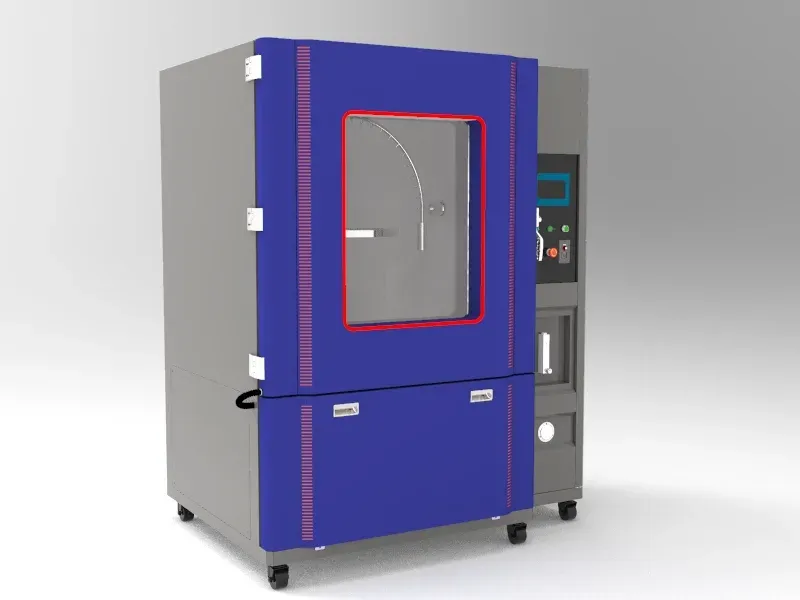

IPX3-4 Rain Test Chamber
IPX3 and IPX4 rain test chamber with oscillating spray tube simulating angled rain and splash for waterproof verification of outdoor lighting, communication devices and automotive components.
Specifications
- Turntable Load Capacity
- 20KG
- Turntable Speed (rpm)
- 1-3 (adjustable)
- Spray Orifice Diameter (mm)
- 0.4 mm (IPX4K uses 0.8 mm needles at a water pressure of approx. 400 kPa)
- Aperture
- 50

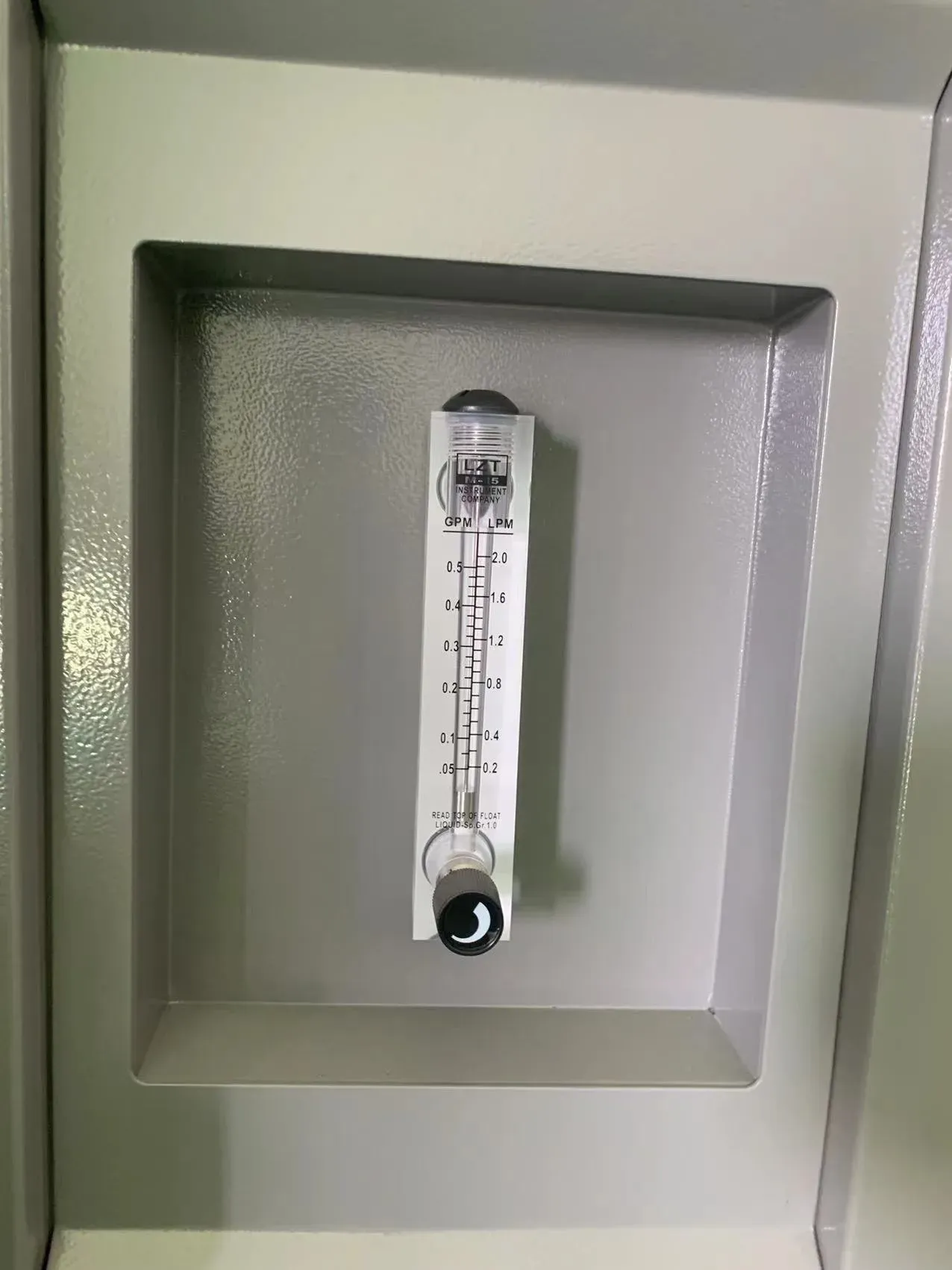

- Flow Rate
- 0.07 L/min +5%
- Rain Spray Pressure (kPa)
- 80-150
- Spray Pipe Oscillation Angle Range
- 120 degrees and 320 degrees (approximate)
- Nozzle Included Angle
- 120 degrees（IPX3）、180 degrees（IPX4）
- Oscillation Angle
- 120 degrees（IPX3）、320 degrees（IPX4）

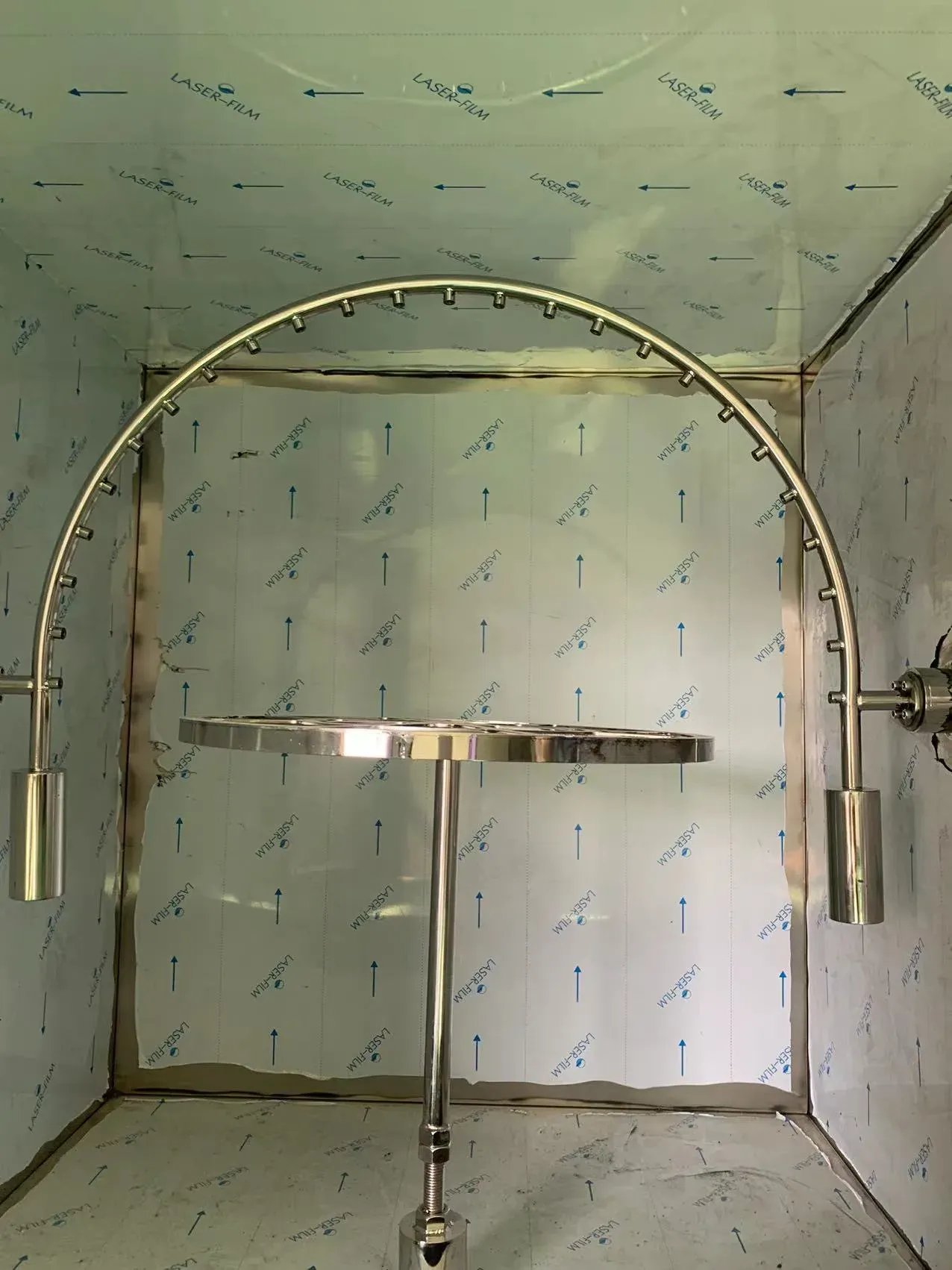

- Oscillating Tube Swing Range
- maximum +/- 180 degrees (approximate)
- Spray Pipe Oscillation Speed
- IPX3: 15 cycles/min; IPX4: 5 cycles/min
- Test Duration
- 1-999,999 min (settable)
- Material
- stainless steel
- Environmental Conditions
- Temperature 5-40 degC, relative humidity <= 85% RH
- Safety Protection
- Power overload / short-circuit protection, earth leakage protection, low-water protection, audible alarm
Application
IPX3 and IPX4 rain test chamber with oscillating spray tube simulating angled rain and splash for waterproof verification of outdoor lighting, communication devices and automotive components.
Applicable Standards
Tested to GB/T 2423.38-90, GB4706.32-2004, IEC 5129.
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
