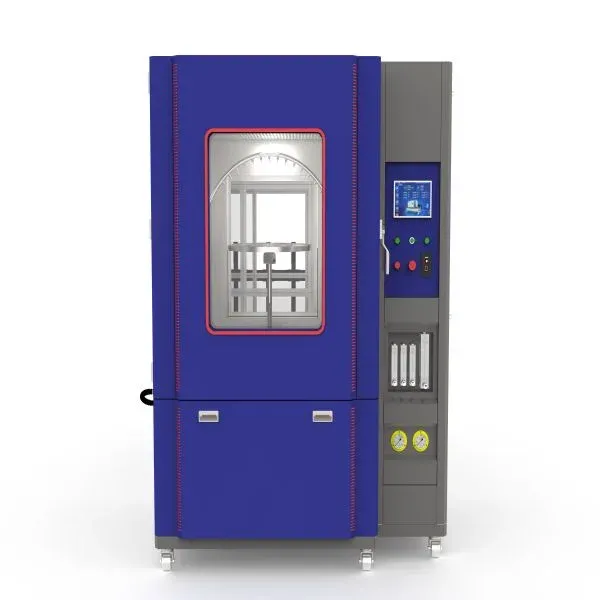

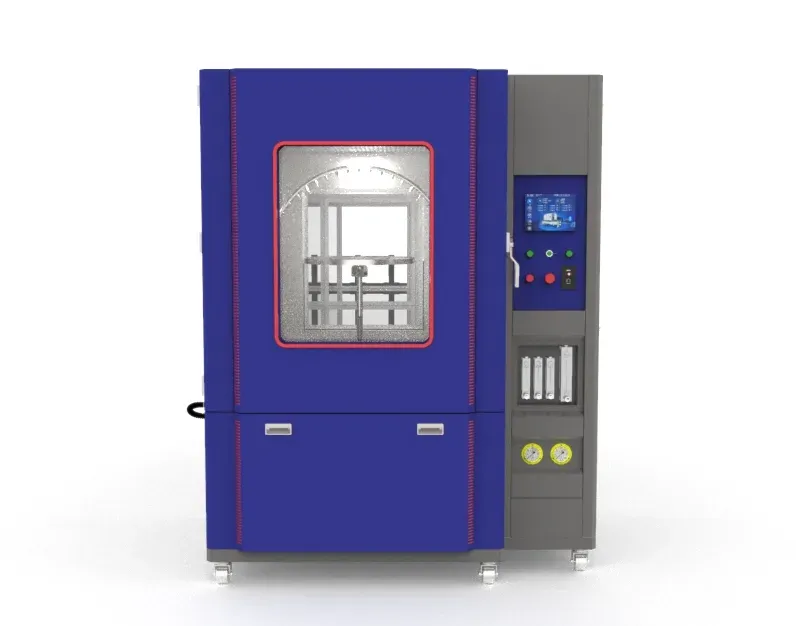

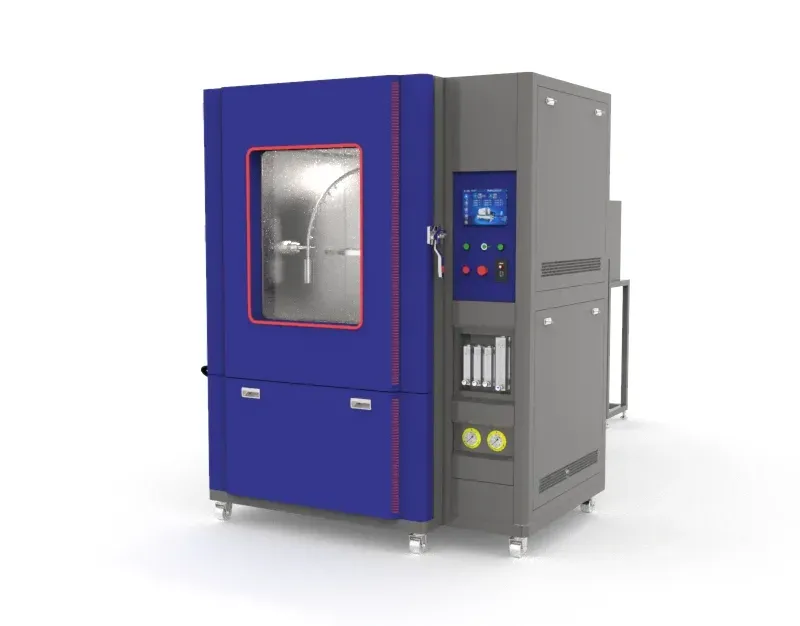

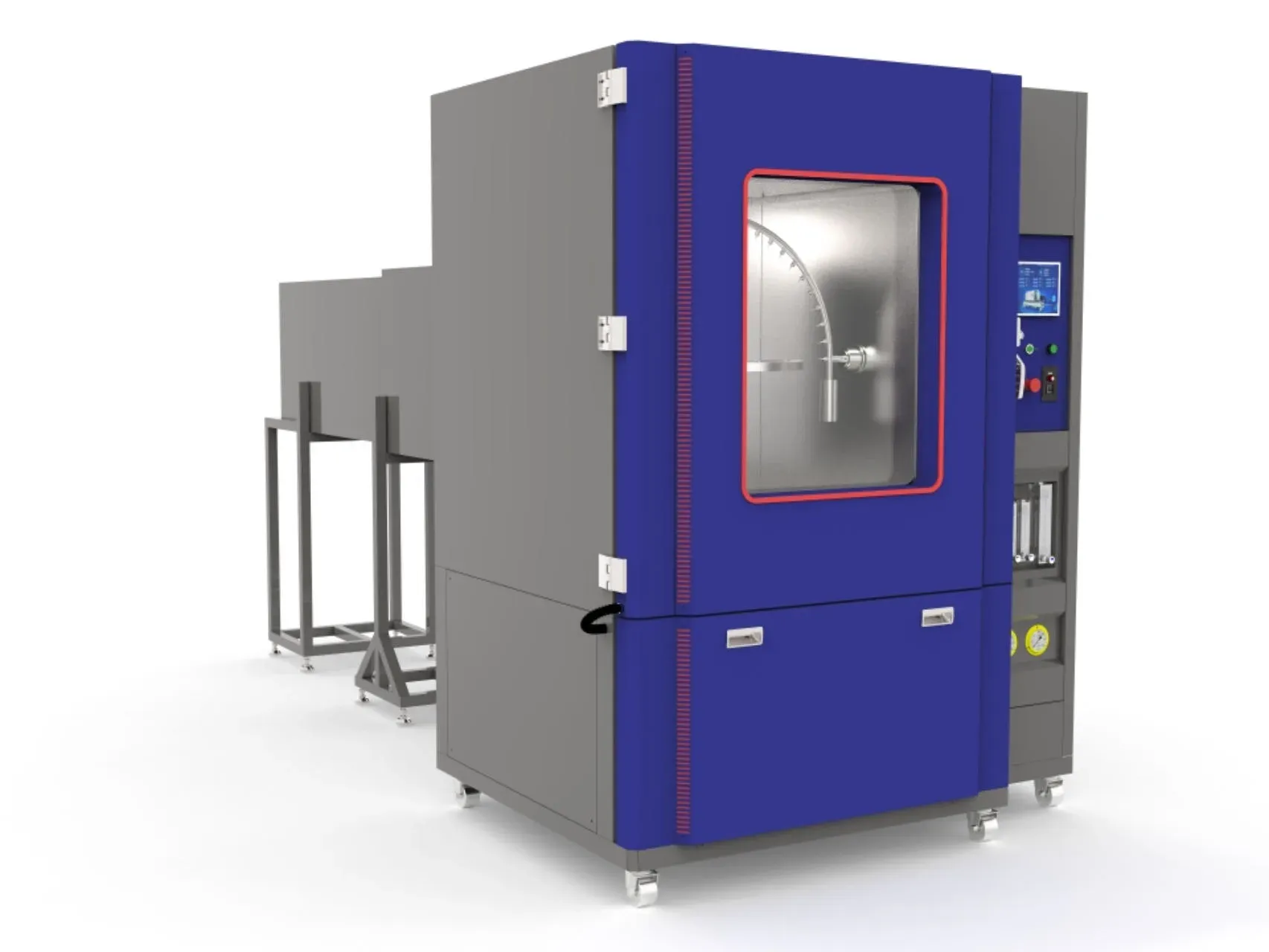

IPX123456 Combined Rain-Spray Test Unit

Combined IPX1 to IPX6 rain spray test unit covering drip, oscillating tube and spray testing in one system, for waterproof rating verification of electrical and electronic products, lamps and automotive parts.

Specifications

Model

800 x 800 x 120 mm (W x D x H)

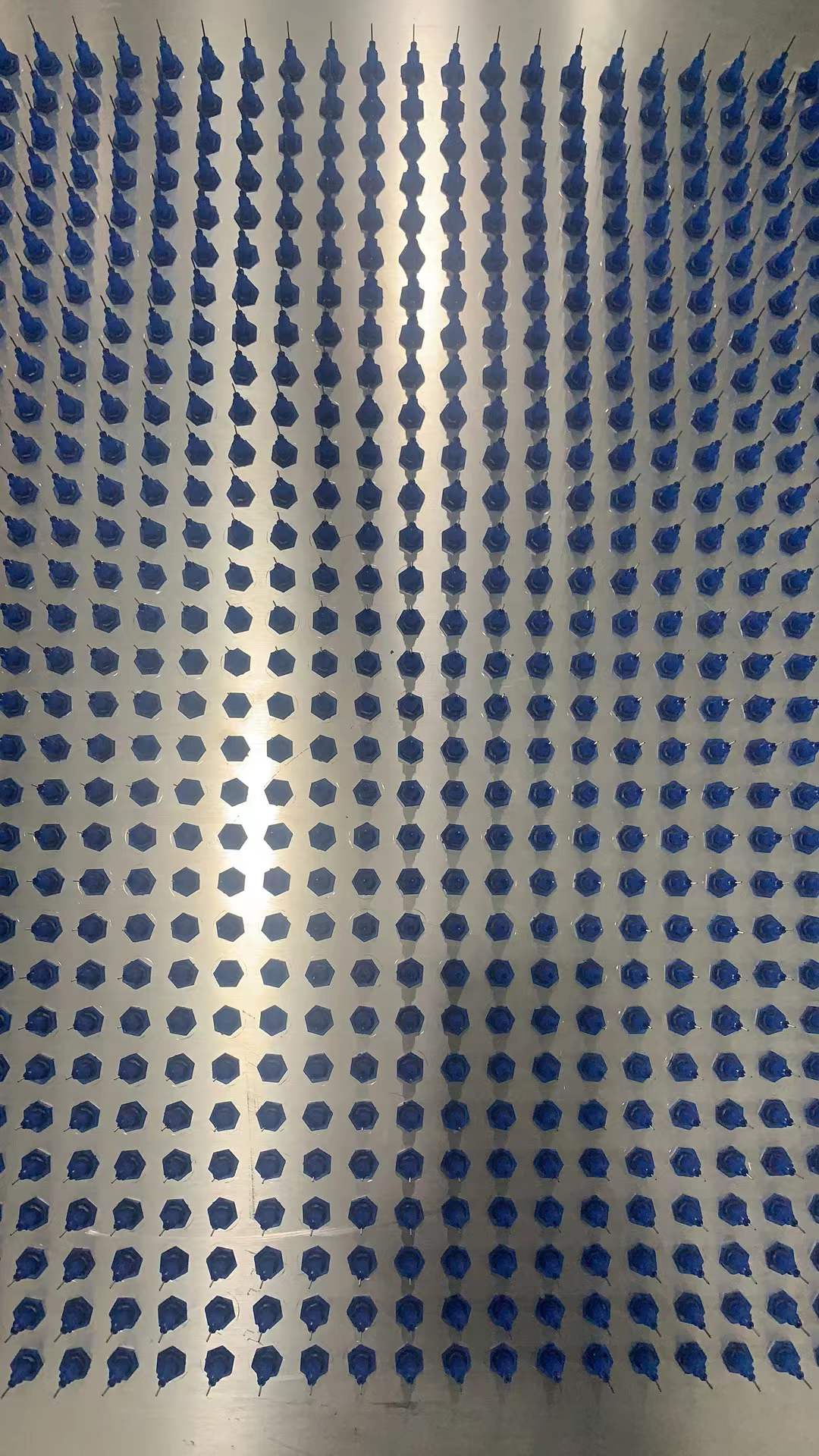

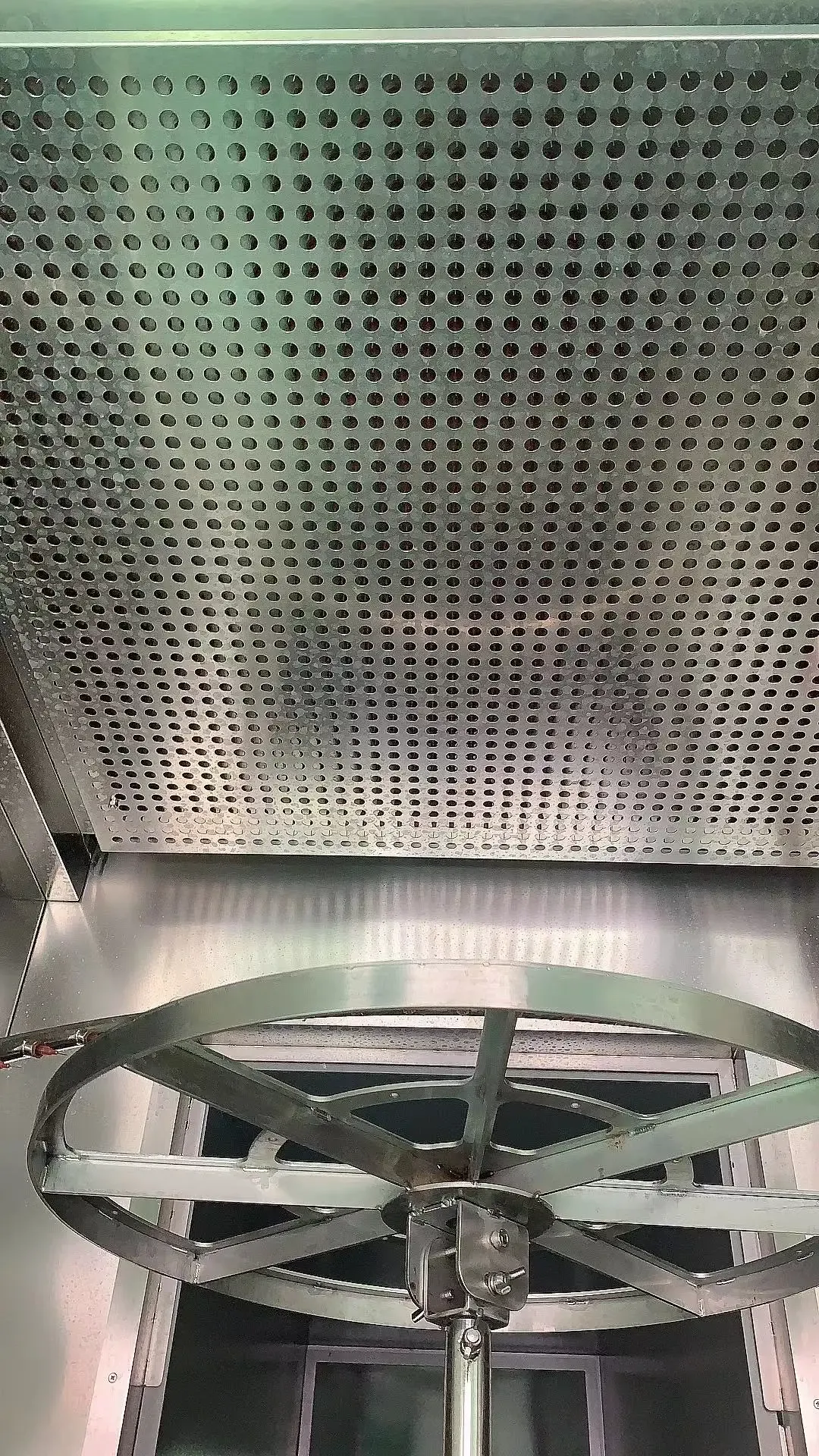

Drip Pinhole

Diameter 0.4 mm

Pinhole Spacing

20x20 mm

Drip Duration

1-99 min per cycle or longer, settable via touchscreen

Drip Height

Sample 200 mm from the pinholes; drip tray maximum height above floor 1500 mm, adjustable

Air Pressure

After the test completes, the drip tank drains automatically, followed by 3 minutes of air blow; the duration is settable

Frame Material

SUS304 square tube

Installation Method

ceiling-mounted installation

Oscillating Tube

Radius 400 mm, 600 mm and 1000 mm (standard); other sizes can be customised

Oscillating Tube Inner Diameter

¢16 mm

Nozzle Orifice

0.4 mm

Spray Orifice Spacing

50 mm

Oscillating Tube Material

304 stainless steel industrial tube

Nozzle Included Angle

IPX3：120 degrees，IPX4:180 degrees

Oscillating Tube Angle

IPX3: 120 degrees; IPX4: 320 degrees (approximate)

Flow Rate

R400 oscillating tube: 1.75 L/min; R600: 2.9 L/min; R1000: 4.3 L/min

IPX56 spray system

1 x IPX5 nozzle, 1 x IPX6 nozzle

Aperture

IPx5：¢6.3 mm，IPx6：¢12.5 mm

Nozzle Connection Type

Threaded connection with union joint to the water pipe for simple, convenient operation

Spray Duration

Standard 3 minutes, or longer, settable

Spray Distance

Sample positioned 2.5-3 m from the nozzle; distance controlled by the operator

Nozzle Connection Hose

imported transparent hose with stainless steel wire reinforcement

Nozzle Material

304 stainless steel
