Rain Spray Test Chamber

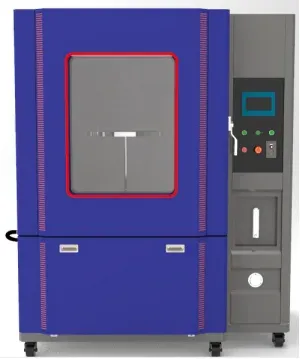

IPX1-IPX2 Drip Test Chamber 1000L
Tested to GB2423, GB4208, IEC 60529, ISO20653.
Specifications
- Drip Tank to Sample Distance
- 200 mm
- Drip Orifice Diameter
- dia. 0.4 mm
- Spray Orifice Spacing
- 20 mm
- Rainfall Rate
- 1 mm or 3 mm per minute, adjustable
- Turntable Speed (rpm)
- 1-3 rpm adjustable (IPX1/IPX2 standard; turntable tiltable to 15 degrees)
- Turntable Load Capacity
- 20 kg
- Temperature
- 5-40 degC, relative humidity <= 85% RH
- Inner Chamber Material
- SUS304 stainless steel
- Outer Chamber Material
- 201 stainless steel
- Control system
- in-house developed control system
- Safety Protection System
- Power overload/ short-circuit protection, earth leakage protection, low-water protection, audible alarm
Applicable Standards
Tested to GB2423, GB4208, IEC 60529, ISO20653.
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
After-Sales Service
During the warranty period, components damaged under normal operation are replaced free of charge.
After the warranty period, replacement parts damaged under normal operation are charged at cost only.
Full technical training is provided, along with timely after-sales support for maintenance and spare parts.
Application
