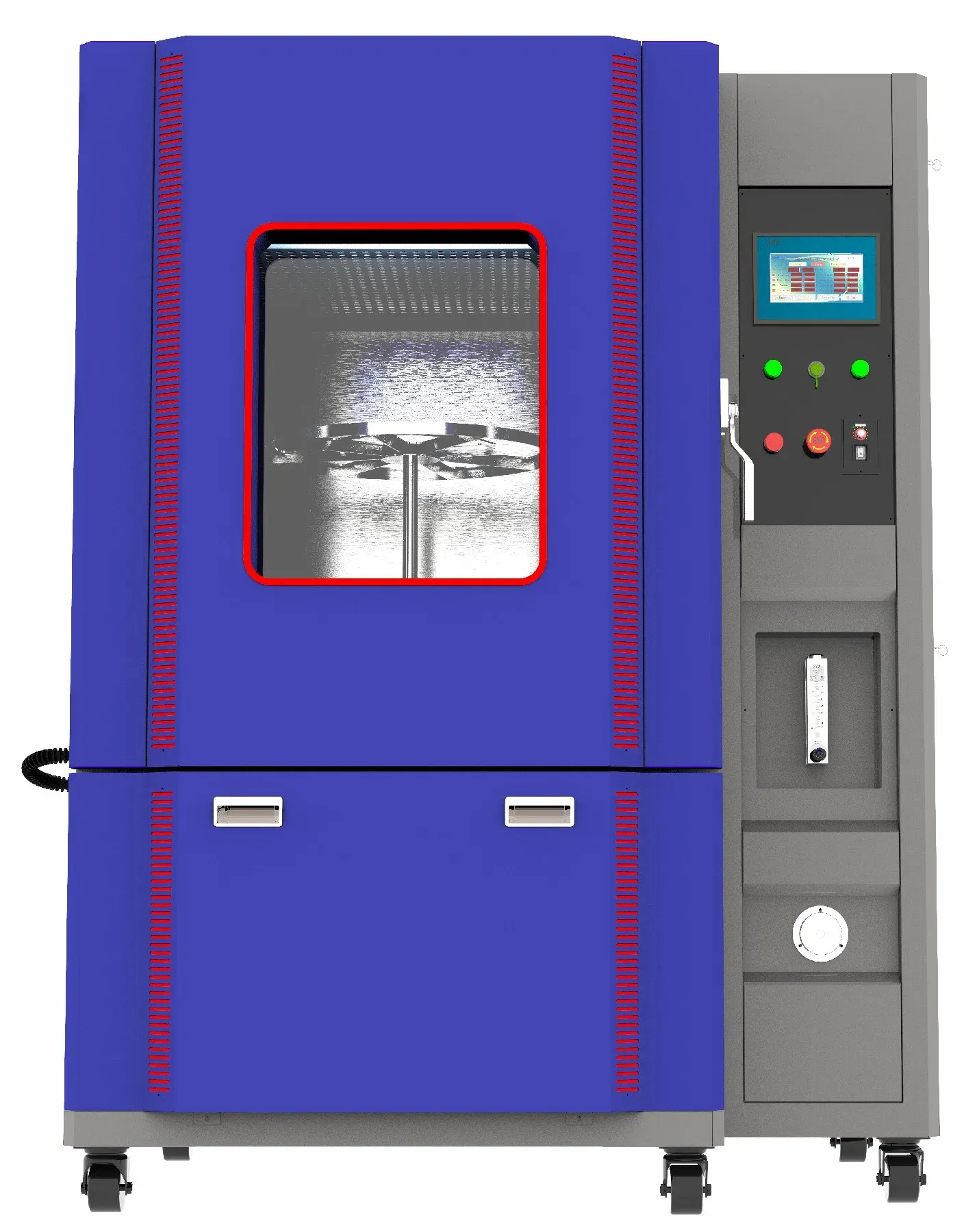

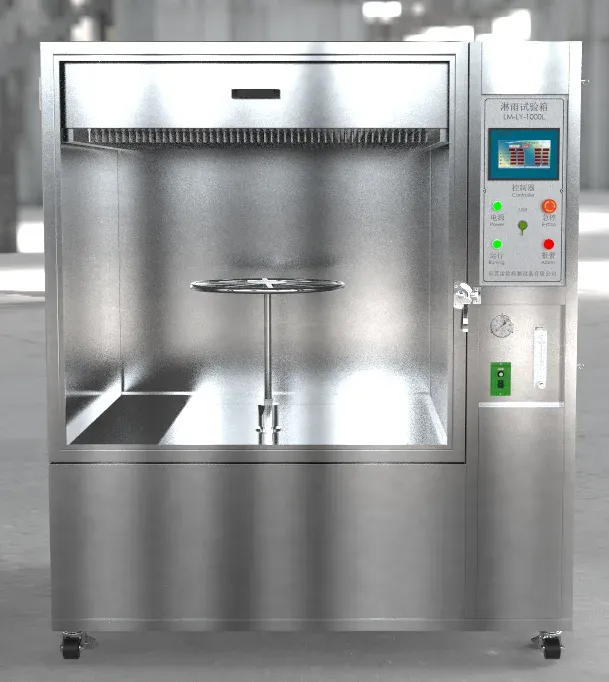

IPX1-2 Drip Test Chamber
IPX1 and IPX2 drip test chamber for waterproof verification of communication devices, automotive parts, outdoor lighting and signal equipment, with adjustable drip rate and turntable.
Specifications
- Drip Tank to Sample Distance
- 200 mm
- Drip Orifice Diameter
- dia. 04 mm
- Aperture
- 20 mm
- Rainfall Rate
- 1 mm or 3 mm per minute, adjustable
- Test Duration
- 1-999,999 min (settable)
- Turntable Speed (rpm)
- 1-3 rpm adjustable (IPX1/IPX2 standard; turntable tiltable to 15 degrees)
- Turntable Load Capacity
- 20 kg
- Power Supply
- 220 V, 50 Hz, 3 kW
- Temperature
- 5-40 degC, relative humidity <= 85% RH
- Inner Chamber Material
- SUS304 stainless steel
- Outer Chamber Material
- 201 stainless steel
- Control System
- in-house developed control system
- Safety Protection
- Power overload / short-circuit protection, earth leakage protection, low-water protection, audible alarm
Application
IPX1 and IPX2 drip test chamber for waterproof verification of communication devices, automotive parts, outdoor lighting and signal equipment, with adjustable drip rate and turntable.
Applicable Standards
Tested to GB/T 2423.38-2006, GB4208, IEC 60529.
Technical Parameters
Key technical parameters are listed in the specification table for this model. Configurations can be adapted to your test standard, sample size and site conditions.
